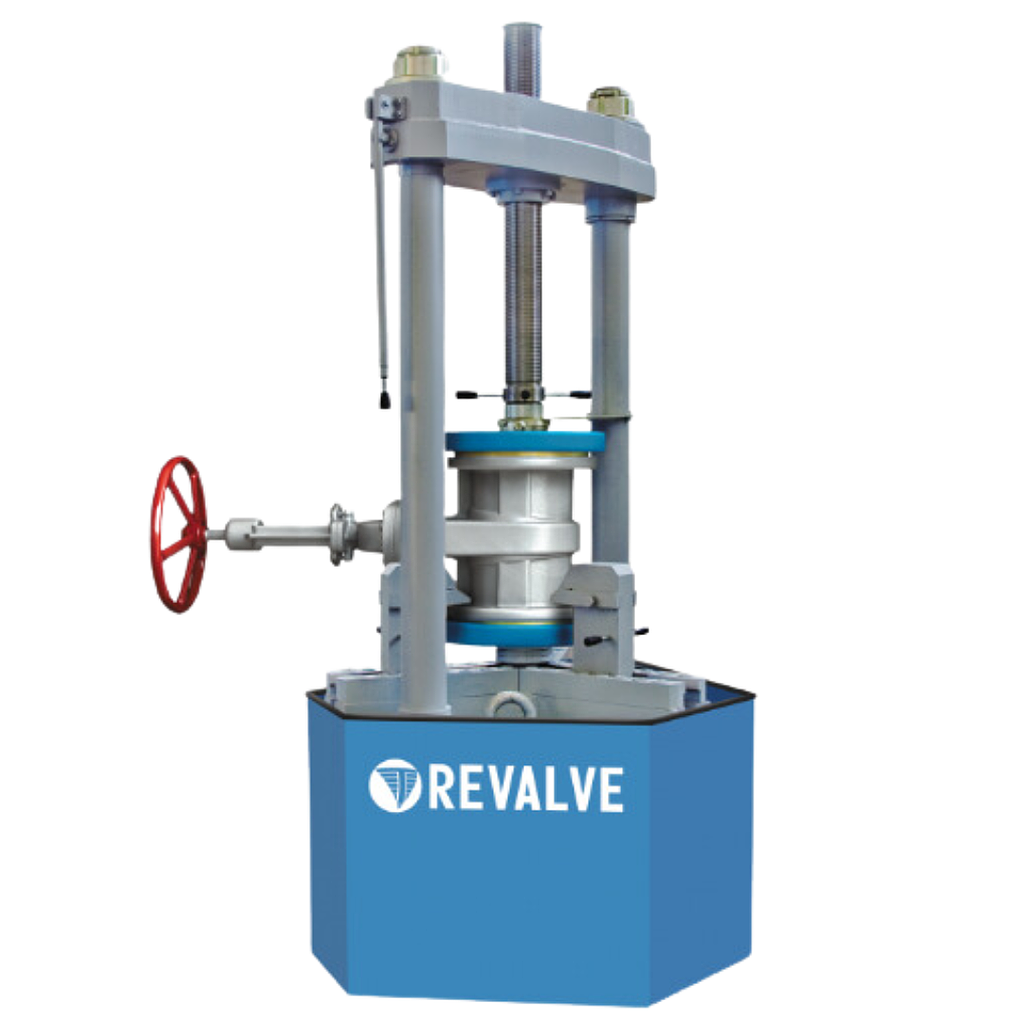

Revalve S-3-500/60 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 60t

Diameter of the clamped flange(″):90/730 (3/28)(min/max), mm

Maximum thickness of clamped flange(″): 115 (4)mm

Distance between test tables(″): 70/1000 (3/39) mm

Distance between the columns(″): 775 (31) mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH)(″):1350x1408x3095(53x55x122)mm

Weight: 1803kg
