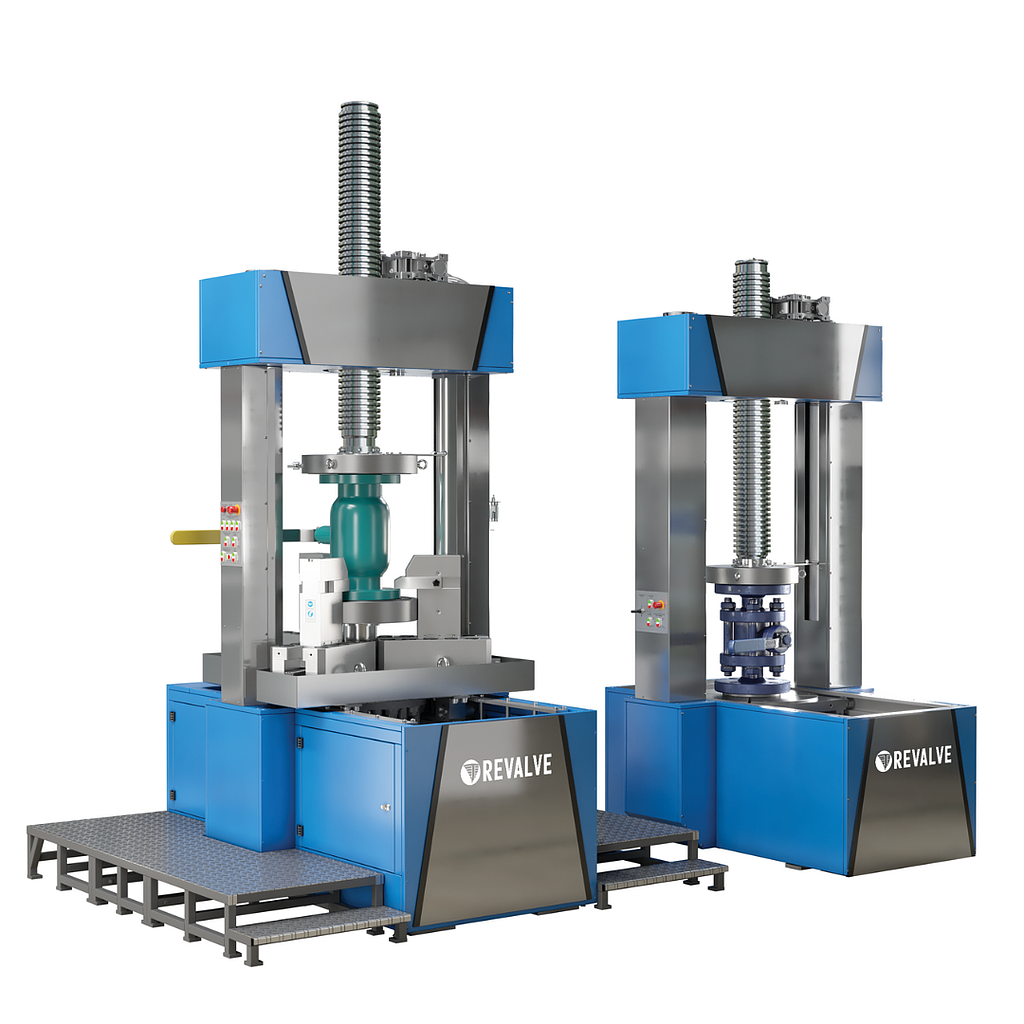

Revalve S-3-500/400 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 400t

Diameter of the clamped flange("): 110/850 (4/33)(min/max), mm

Maximum thickness of the clamped flange("): 142 (5) mm

Distance between test tables("): 100/1300 (4/51)(min/max), mm

Distance between the columns("): 1260 (50)mm

Power supply: 400/50 V/Hz

Power consumption: 5kW

Overall dimensions (LхWхH)(″): 2460х1800х4820 (97х71х190)mm

Weight: 10305kg
