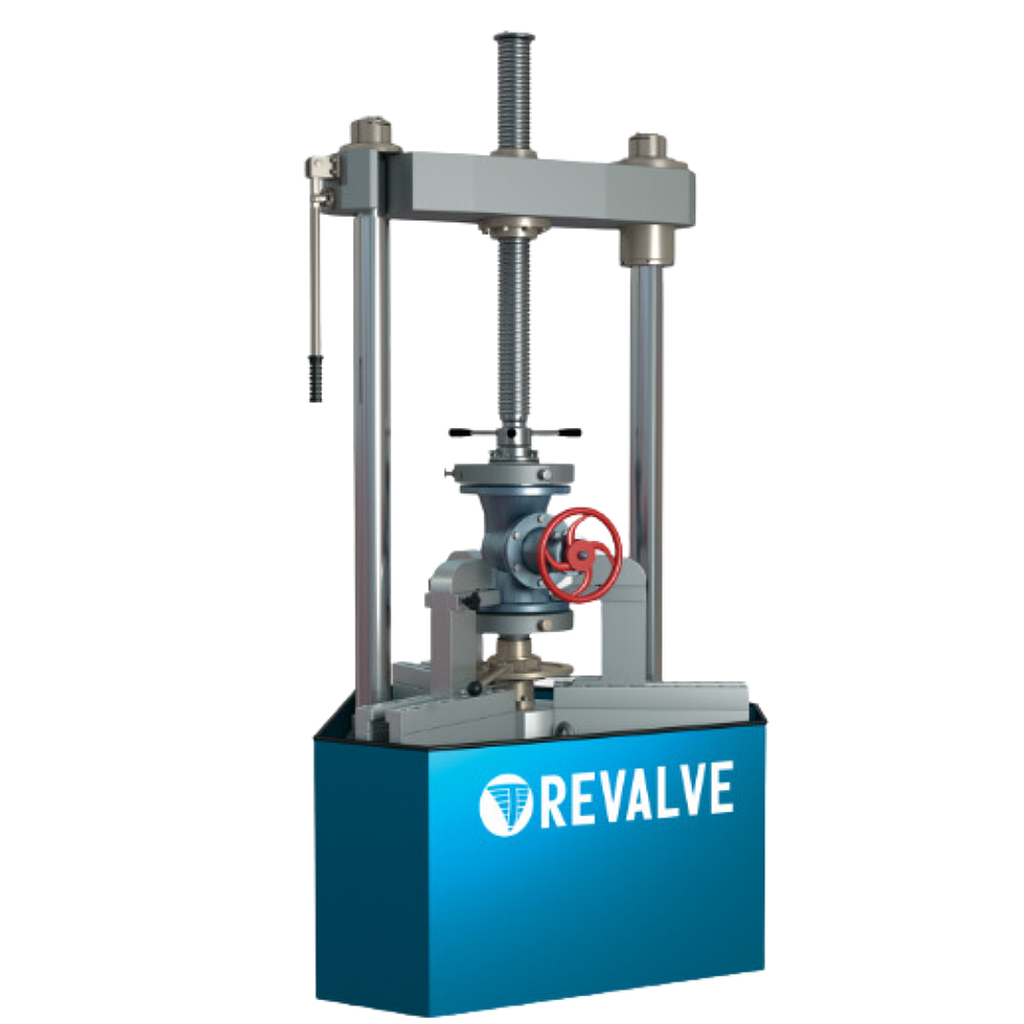

Revalve S-3-500/160 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 160t

Diameter of the clamped flange(″):90/730 (3/28)(min/max), mm

Maximum thickness of clamped flange(″): 90 (3)mm

Distance between test tables(″): 77/1146 (3/45)(min/max),mm

Distance between the columns(″): 750 (29) mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH), mm (″): 1495х1405х3707(59x55x146) mm

Weight: 3112kg
