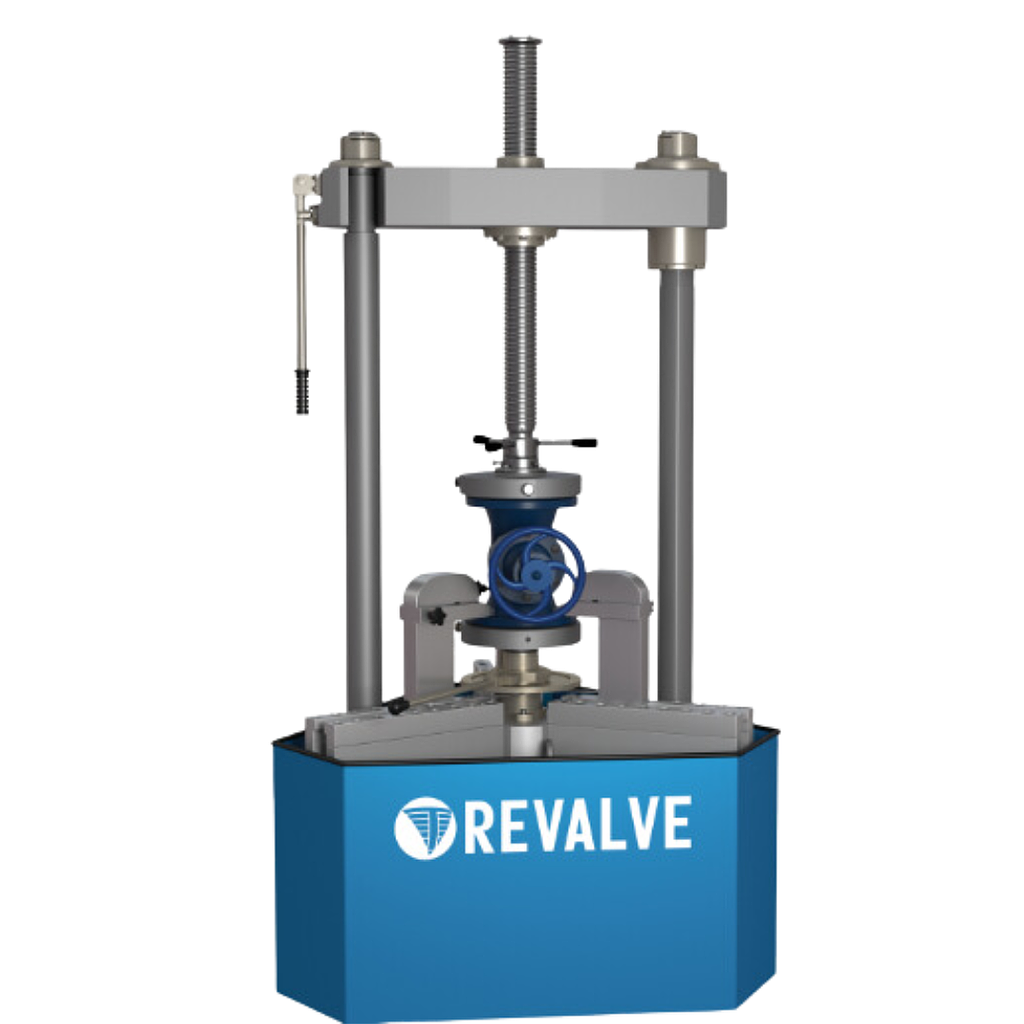

Revalve S-3-500/100 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 100t

Diameter of the clamped flange(″):90/730 (3/28)(min/max), mm

Maximum thickness of clamped flange(″): 115 (4)mm

Distance between test tables(″): 112/1160 (4/45) mm

Distance between the columns(″): 770 (30) mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH), mm (″): 1495х1400х3646(59x55x143)mm

Weight: 2452kg
