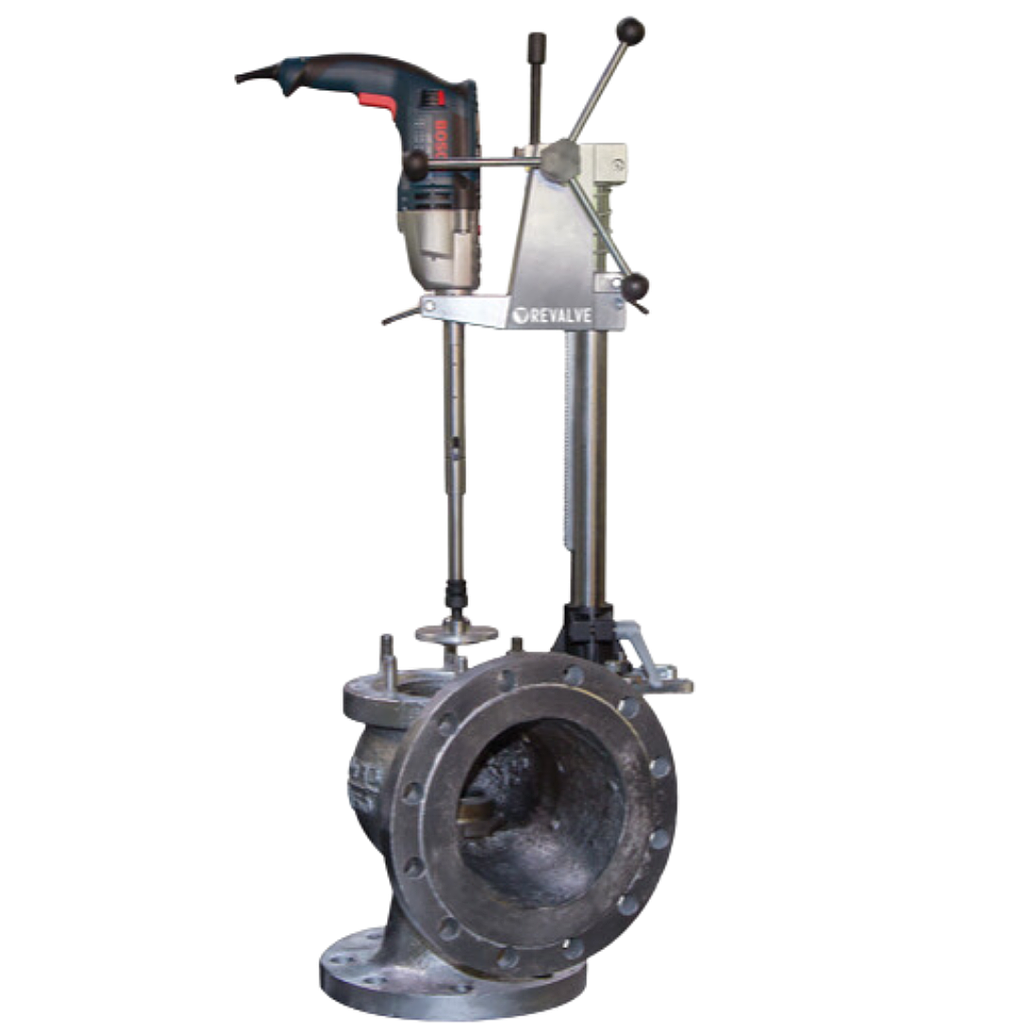

Specifications:
Valve range, DN, mm (″) 8...100 mm (¼...4″)
Maximum depth of the machined surface (distance from valve axis to the valve actuator flange end): (″)330 (13)mm
Pneumatic-driven machine
Maximum disc:1300 RPM
Drive power on 6,3 bar pressure,:0,7kW
Air consumption: 1000 l/min
Air drive pressure: 6,3±0,5bar
Machine with non-accumulator electric drive (wired)
Maximum disc RPM (1st gear/ 2nd gear): 1000/2800
Power consumption: 1,2 kW
Drive torque, N m (1st gear/ 2nd gear): 33,0/13,0
Power supply: 230/50 V/Hz
Machine with accumulator electric drive (wireless)
Maximum disc RPM (1st gear/ 2nd gear): 500/1700
Drive torque, N m (1st gear/ 2nd gear) 24,0/11,0
Weight of the machine (w/o packing): 13,3 kg
Packed weight: 27,5 kg
