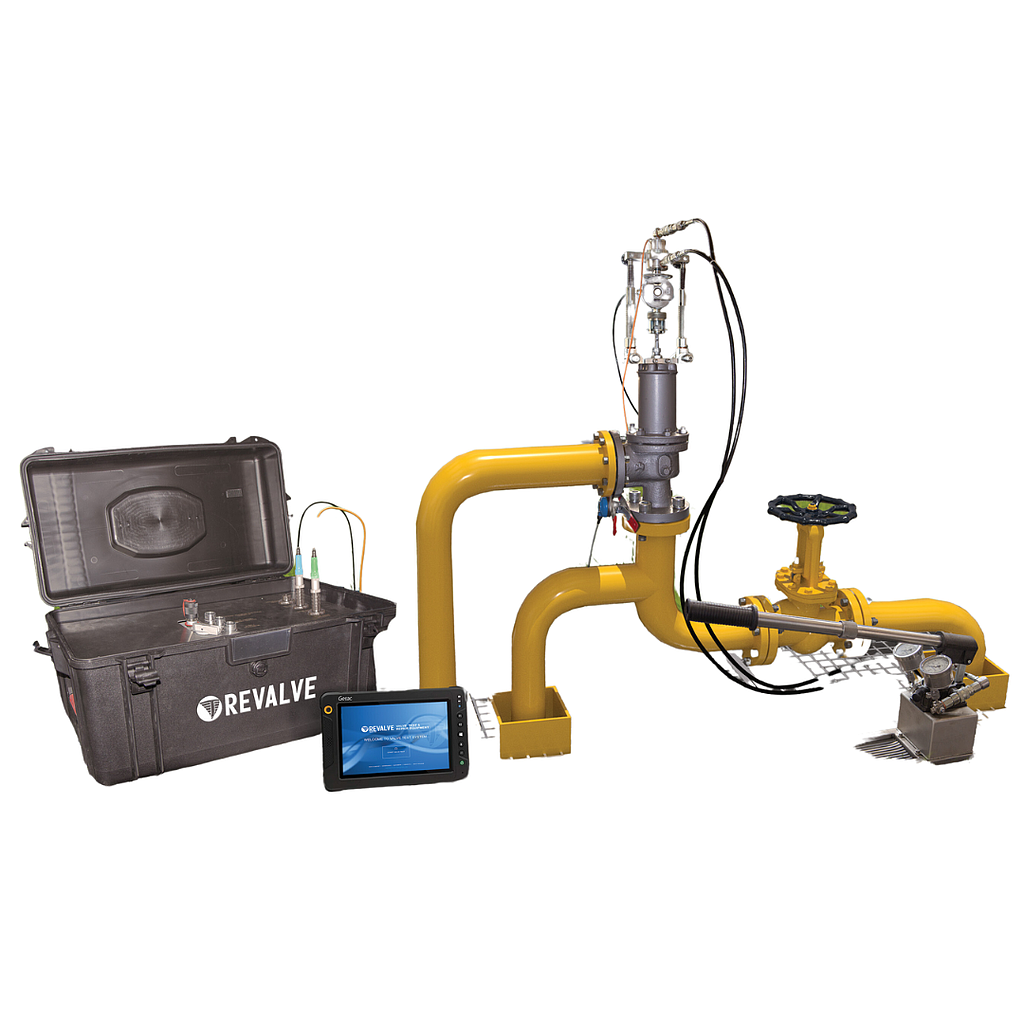

Revalve D-14-EX ລະບົບການວັດແທກແບບພົກພາ

Specifications:

Spool traveling mechanism actuator: hydraulic

Maximum force applied to the PSV spring, kN: 2,0; 20,0; 50,0

ATEX certificate: zone 0 and zone 1

Operating temperature, ºС: -10...+50

Overall dimensions (LxWxH), mm (″):

- spool traveling mechanism/ control unit: 600х180х205 (23x7x8) / 230х210х560 (9x8x22)

- control unit: 455х210х480 (18x8x19) / 700х385х360 (25x15x13)

Weight (spool travelling mechanism / control unit), kg: 68,4 (14 / 25)
