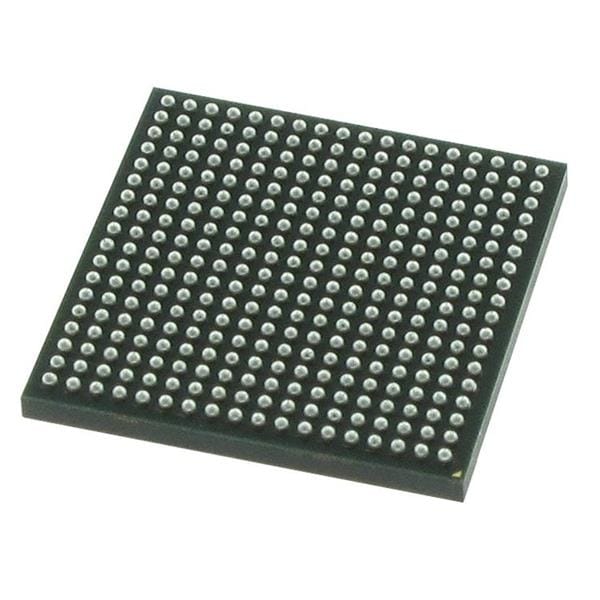

Renesas Electronics R7S721001VCBG#AC0 ມາຄຣໂພໂຣເຊປເຊະ - MPU RZ/A1H 400MHz 10MB BGA324 Q2A no enc MP

Core: ARM Cortex A9

Memory Type: SRAM

Data RAM Size: 10 MB

Data Bus Width: 32 bit

Interface Type: Serial

Mounting Style: SMD/SMT

Number of I/Os: 171 I/O

Number of Cores: 1 Core

Watchdog Timers: Watchdog Timer

Processor Series: RZ/A

Moisture Sensitive: Yes

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 400 MHz

Operating Supply Voltage: 1.1 V to 1.26 V

L1 Cache Instruction Memory: 32 kB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 128 kB
