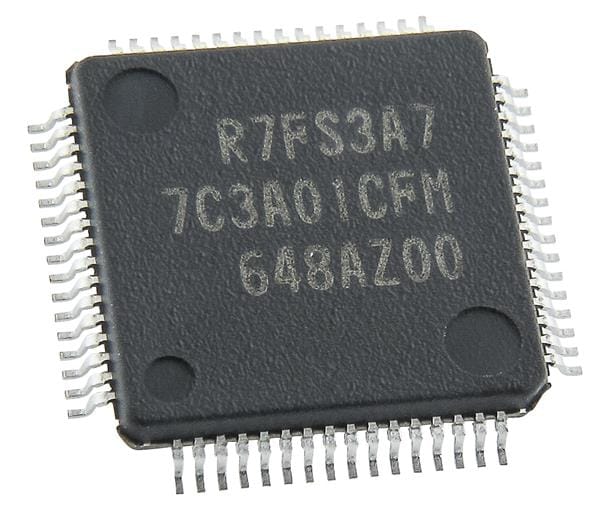

Renesas Electronics R7FS3A77C3A01CFM#AA1 MCUs SYNERGY MCU PLATFORM S3A7 192K 64QFP

Core: ARM Cortex M4

Width: 10 mm

Height: 1.7 mm

Length: 10 mm

Unit Weight: 300 mg

Data RAM Size: 192 kB

Data RAM Type: SRAM

ADC Resolution: 14 bit

DAC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, QSPI, SCI, SPI, SSI, USB

Mounting Style: SMD/SMT

Number of I/Os: 50 I/O

Watchdog Timers: Watchdog Timer

Processor Series: S3

Moisture Sensitive: Yes

Program Memory Size: 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.6 V

Analog Supply Voltage: 5.5 V

Number of ADC Channels: 18 Channel

Maximum Clock Frequency: 48 MHz

Number of Timers/Counters: 9 Timer

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
