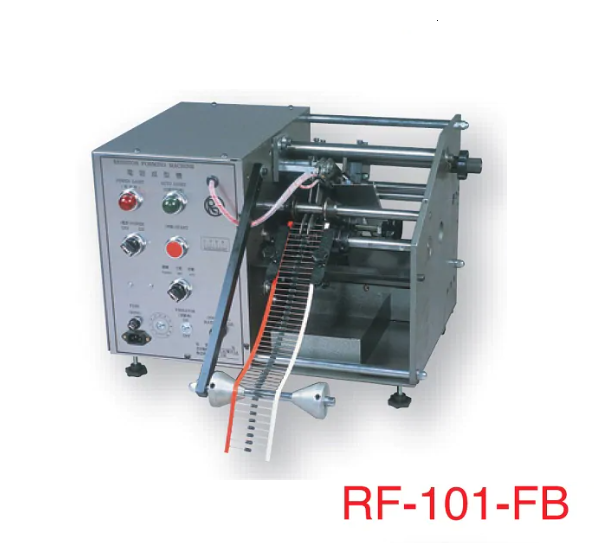

REN THANG RF-101FB Loose Axial Lead ອະດີດ

Body length: 3.8 - 20 mm

Body diameter: 2.3-8 mm

Shoulder: 1.2 min

Height: Min 5. Fixed at 5mm or more

Lead Length: Adjustable

Support Length: 25 Max

Pitch: 2.5mm

Wire diameter: 0.4-1.5 mm

Power: 110/220 V AC. 60/50HZ

Dimension: 800x700x600 (LxWxH)

Weight: (N.W.):65 kg

FEATURES:

FB type, targets for TAPED parts fed by Feeding GUIDES.

RF-101FB, forms and kinks leads into Vertical/long U shape with kinks on leads.

Tailored / Custome die is available for any forming specification. Welcome to email drawing for our best solution for you.

[Optional Accessory] Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.

Ready-to-use setup - customers can use the machine right after receipt of it

OEM, DIP, PCBA Insertion line's most helpful equipment!

Never damage component leads or components body.

Datasheet
