Body length: 3.8 - 20 mm
Body diameter: 2.3-8 mm
Shoulder: 1.2 min
Height: Fixed at 8mm or more
Lead Length: Adjustable
Support point: 2 ~ 3mm
Pitch: A + 2C
Wire diameter: 0.4-1.3 mm
Power: 110V/60Hz ; 220V/50Hz, upon your country.
Dimension: 1050(L), 600(W), 650(H) mm
Weight: (N.W.) 115 Kgs. (G.W. ) 150 Kgs
Performance: Min. 6,600 pieces / hour
Volume of Vibrant Bowl Feeder: 300~ 500 pieces at a time, depends on component's body.
Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.

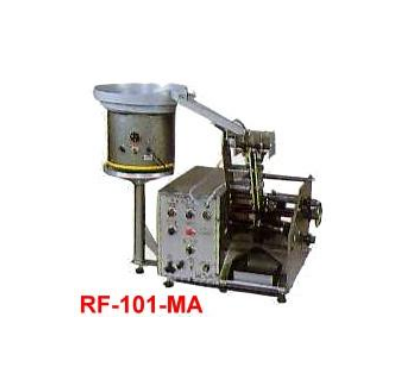

RF-101-MA--- For Loose packed components only.
FEATURES:
MA type, targets for LOOSE parts, which are fed by VIBRANT BOWL FEEDER.
RF-101MA, forms and kinks leads into U shape with kinks. Kinks can be any shape upon customer's request.
Tailored / Custome die is available for any forming specification. Welcome to email drawing for our best solution for you.
Heavy duty and Powerful construction- Sustainable lifespan.
Ready-to-use setup - customers can use the machine right after receipt of it
OEM, DIP, PCBA Insertion line's most helpful equipment!
Datasheet
