Body length: 3.8 - 20 mm
Body diameter: 2.3-8 mm
Shoulder: 1.2 min
Height: Min 5. Fixed at 5mm or more
Lead Length: Adjustable
Support Length: 25 Max
Pitch: 2.5mm
Wire diameter: 0.4-1.5 mm
Power: 110/220 V AC. 60/50HZ, upon your country.
Dimension: 1050(L), 600(W), 650 (H) mm
Weight: (N.W.) 100 Kgs. (G.W. ) 130 Kgs
Volume of Vibrant Bowl Feeder: 300~ 500 pieces at a time, depends on component's body.
Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.
FEATURES:
FA type, special for LOOSE parts, which are fed by VIBRANT BOWL FEEDER.

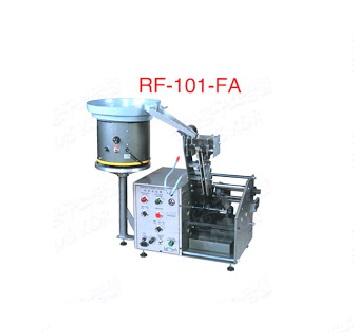

RF-101FA, forms and kinks leads into vertical U shape with kinks. Kinks can be any shape upon customer's request.
Tailored / Custome die is available for any forming specification. Welcome to email drawing for our best solution for you.
[Optional Accessory] Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.
Ready-to-use setup - customers can use the machine right after receipt of it
Heavy duty and Powerful construction- Sustainable lifespan.
Please refer to PDF file in upper level for reference.
Datasheet
