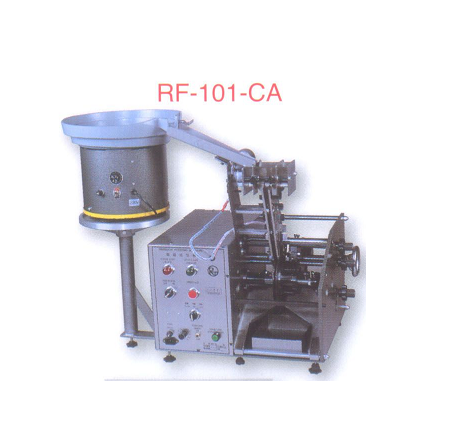

REN THANG RF-101-CA Loose Axial Lead ອະດີດ: Punching ສາຍນໍາ

Body length: 3.8 - 20 mm

Body diameter: 2.3-8 mm

Shoulder: 1.2 min

Punching height: 2 mm (Fixed)

Height: Fixed at 8mm or more

Lead Length: Adjustable

Support point: 2 ~ 3mm

Pitch: A + 2C

Wire diameter: 0.4-1.3 mm

Power: 110/220 V AC. 60/50HZ

Dimension: 1050(L), 600(W), 650(H) mm

Weight: 115 kgs (N.W.) 175 kgs (G.W.)

RF101-CA ---For LOOSE-packed components ( in bulk).

Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.

FEATURES:

CA type, targets for LOOSE parts, which are fed by VIBRANT BOWL FEEDER.

RF-101CA Kinking/ Punching die is equipped upon requested shape and specification. The varied punching specification is available with customized die set, offering wide rage application.

Simply tell us "HOW TALL" the components will be above PCB.

Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.

Heavy duty and Powerful construction- Sustainable lifespan.

Ready-to-use setup - customers can use the machine right after receipt of it

Easy maintanance and simple operation is your best choice.
