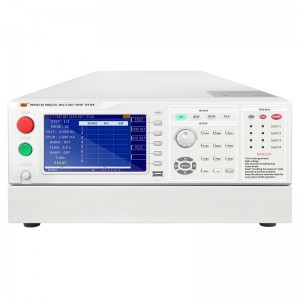

Rek RK9974-20 ໂປຣແກຣມກວດສອບຄວາມປອດໄພອັດຕະໂນມັດ (AC 400VA(20.0kV 20mA), DC 200VA(20.0kV 10mA))

ACW

Output voltage range: 0.50～20.00kV

maximum(power)output: 400VA(20.0kV 20mA)

Maximum rated current: 20mA

discharge waveform: Sine-wave DDS + power amplifier

DCW

Output voltage range: 0.10～20.00kV

maximum(power)output: 200VA(20.0kV 10mA)

Maximum rated current: 10mA

Voltmteter

voltmeter range: AC (0.10～20.00)kV

accuracy: ± (1% + 3 words)

specification error: ± (1% + 3 words)

ammeter

measuring range: AC 0～20mA

measurement accuracy: ± (1% + 3 words)

time-meter

range: 0，0.-999.9S  OFF=continuation

minimum resolution: 0.1S

testing time: 0.0S-999S  OFF=continuous test

Arc detection: 0-20mA

output frequency: 50Hz/60Hz

working temperature: 0-40℃  ≤75%RH

power requirement: 110/220±10%  50Hz/60Hz±3Hz

interface: Standard equipped with RS232, RS485, USB, PLC, wireless remote control, optional LAN

Wireless remote control function: no

screen: 7 Inch TFT 800*480

Appearance volume (D×H×W): 440x135x485 mm

weight: About 78KG

Random standard accessories: Power cable RK00001, RS232 communication cable RK00002, RS232 turn USB cable RK00003, USB turn square port cable RK00006,16G U disk (manual), wire interface transfer drive disc, RK26003A test line, RK26003B test line, RK8N + high voltage bar

Choose accessories: RK00031 USB to RS485 mother serial port line industrial class connecting line 1.5 meters long, upper machine
