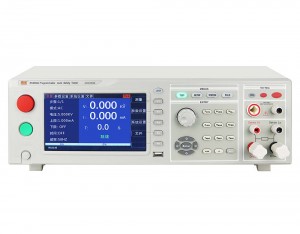

Rek RK9960A Hipot + ຄວາມຕ້ານທານກັບດິນ + insulation (AC:5kV, DC: 6KV, AC:10mA, DC:5mA)

ACW

Output voltage range: 0.05~5kV

Maximum output power: 50VA（5kV 10mA）

Maximum rated current: 0.001mA-10mA

Output waveform: Sine wave DDS+ amplifier

DCW

Output voltage range: 0.05~6kV

Maximum output power: 30VA（6kV 5mA）

Maximum rated current: 0.1uA-5mA

IR

Output voltage (DC): 0.10~1kV

Resistance test range:

≥500V

1MΩ-1GΩ± (5% reading ±5 digits)

1GΩ-10GΩ± (10% reading ±5 digits)

<500V

0.2MΩ-1GΩ± (10% reading ±5 digits)

1GΩ-10GΩ For reference only, no accuracy requirement

GR

Output current: AC 3-30A

Current accuracy: ±(2.0% setting + 0.02A)

Resistance test range: 0-510mΩ, when the output current is 3-10A; 0-120mΩ, when the output current is 10-30A;

Resistance accuracy: ±(2.0% reading value + 1mΩ)

Timer

Range: 0.0-999.9S

Minimum resolution: 0.1S

Test time: 0.1S-999S OFF= continuous test

Arc detection: 0-20mA

Output frequency: 50Hz/60Hz

Operating temperature: 0-40℃ ≤75%RH

Power requirements: 110/220 ±10% 50Hz/60Hz ±3Hz

Interface: RS232, USB, PLC, RS485 as standard

Screen: 7-inch TFT 800*480

Dimensions (D*H*W): 440mm*135mm*485mm

Weight: 23KG

Standard accessories: High voltage test line, test loop line, ground test clip, cross-shaped uncontrolled high voltage test rod

Optional accessories (complete set): RS232 to USB cable, USB to square port cable, RK301 inspection box, RK501 insulation inspection box, RK101 withstand voltage, RK00070 serial port option LAN network port
