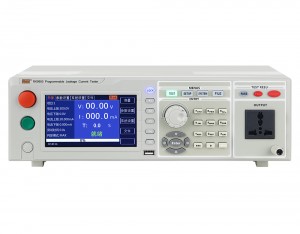

Rek RK9950 ໂປຣແກມກະແສກະແສໄຟຟ້າຮົ່ວໄຫຼ (passive, 0.001-20.00mA)

ຜູ້ຜະລິດRek(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelRK9950

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Basic Functions

Screen Size: 5-Inch TFT LCD Screen

Number Key: Parameter Setting Digital Input

Coding Switch: Parameter Selection And Confirmation Function

Up, Down, Left And Right Function Keys: Parameter Setting Up And Down Selection Function

LOCK Keyboard Locking Function: Prevent Accidental Modification Of Test Conditions Or Prohibit Modification Of Test Conditions

Alarm Function: Voice Alarm

Communication Interface RS232C、RS485、USB

USB Interface: Copy, Copy And Storage Functions

Control Interface: HANDLER(PLC)

Test Method: Dynamic, Static

Load Voltage（AC）

Range: 0-300V

Accuracy: + (2% ×Display Value +0.5V)

Frequency: 50/60Hz

Load Current（AC） Maximum: 25A

Over Current Protection: Sound And Light Alarm, Cut Off The Load Output

Leakage Current Setting

Upper Limit Setting

Range: 0.001-20.00mA

Resolution: ＜10mA，0.001/Step ＞10mA， 0.01mA/Step

Lower Limit Setting

Range: 0.000-20.00mA

Resolution ＜10mA，0.001/Step ＞10mA， 0.01mA/Step

Explanation: The Lower Limit Is Set To 0 Without Judgment

Leakage Current Measurement

Range And Accuracy

0.001-0.050mA DC-10KHz: ± (5% × Display Value + 5 Words)

0.050-20.00mA DC-10KHz: ± (2% × Display Value + 2 Words)

0.050-20.00mA 10KHz-1MHz: ± (5% × Display Value + 5 Words)

MD Simulated Human Network: 8 Standard Networks: MD-A(GB/T12113-2003、GB4793.1-2007)、MD-B B1(GB/T12113-2003、GB4793.1-2007、GB4706.1-2005、GB4943.1-2011、GB8898-2011、GB7000.1-2015)、MD-C(GB/T12113-2003、GB7000.1-2015)、MD-D（GB4793.1-2007）、MD-E（GB4943.1-2011、GB4793.1-2007）、MD-F(IEC60598-1:2014、GB4793.1-2007)、MD-G(GB4943.1-2011、IEC60950-1:2005、GB4793.1-2007、IEC61010-1:2001)

Test Time

Range: Single Timing Test: 0.1-999s ± 1%; Closing Time Is Continuous Test

Explanation: When Setting 0S Test, Only N-Wire Is Tested，No L Conversion

Output Power: Passive

External Power Supply: External Connection

General Technical Index

Working Temperature And Humidity: 0℃-40℃，≦75%RH

Power Supply: 100V-121V，198V-242V，47.5-63Hz 5A 250V

Fuse Size: 5A 250V 10A 110V

External Volume(D×H×W): 430mm×105mm×350mm

Weight: 13KG
