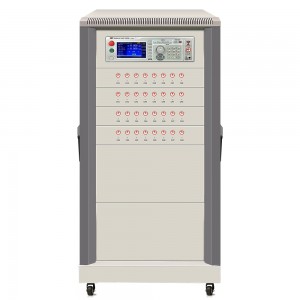

Rek RK9920-32C ທົນທານຕໍ່ເຄື່ອງທົດສອບການສນວນແຮງດັນ (32CH, 5kV AC)
Scan interface: 32-channel
Withstand voltage test
The output voltage
AC: 0.05kV～5.00kV ±2%
DC: 0.05kV～6.00kV ±2%
Current test range
AC: 0～20mA ±(2%reading+5words）
DC: 0～10mA ±(2%reading+5words）
fast discharge: Automatic discharge after the test is over（DCW）
Insulation resistance test
The output voltage（DC）: 0.05kV～5.0kV ±(1%+5words）
Resistance test range: 0.1MΩ-100.0GΩ
Resistance test accuracy
≥500v
0.10MΩ-1.0GΩ ±5%
1.0G-50.0 GΩ ±10%
50.0 GΩ-100.0 GΩ±15%
<500V
0.10MΩ-1.0GΩ ±10%
1.0GΩ-10.0GΩ No precision requirement
Discharge function: Automatic discharge after the test is over
Arc Detection
Measuring range
AC: 1～20mA
DC: 1～20mA
General parameters
Voltage rise time: 0.1～999.9S
Test time setting（AC/DC）: 0.2～999.9S
Voltage fall time: 0.1～999.9S
waiting time（IR）: 0.2～999.9S
time precision: ±1%+0.1S
interface: HANDLER、RS232C、RS485、USB、U disk
Operating temperature: 10℃～40℃，≤90%RH
Power Requirements: 90～121V AC(60Hz)or198～242V AC (50Hz)
Power consumption: ＜400VA
volume(D×H×W): 500mm×1300mm×550mm
weight(net weight): 78.18KG
Optional accessories: RK00031 USB convert RS485Female serial cable industrial grade connecting line 1.5 meters long、host computer
Follower machine standard accessories: power cable RK00001、RS232 Communication Cable RK00002、RS232 convert USB Cable RK00003、USB Reverse port connecting line RK00006、16G U disk(manual)、Cable interface transfer driver CD、RK26003A test lead、RK26003B test lead、 RK8N+high pressure rod
