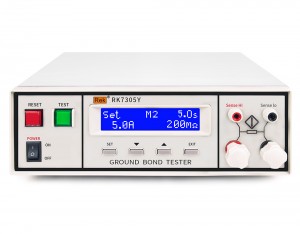

Rek RK7305Y ການແພດ ແຜ່ນດິນໂລກ ການຕໍ່ຕ້ານ (0- 510mΩ)

 Electricity, flow: Set range: AC 3- -30Amps resolution: 0. lAmp / stepAccuracy: ± (2% set point + 0.02A)

Electricity, pressure: Range: AC 6V Maxo (open-circuit voltage)

Frequency, rate: 50 / 60Hz optional accuracy: ±I00PPM

Wave, shape: sinusoidal wave

ammeter: Measurement range: 3- -30A Resolution: 0. lA / stepAccuracy: ± (2% reading + 0. 1A)

ohmmeter: Measurement range: 0- -510mΩ, 0- -120m when the output current is 10A, and when the output current is 10- -30AResolution: lm Ω / stepAccuracy: ± (2% reading + l m Ω)

calculagraph: Timing range: 0- -999.9 seconds resolution: 0. lS / stepAccuracy: ± 50 ms

Offset mode: automatic or manual

Milliohmoffset: Maximum Offset range: 100 mΩ Max.

setting

Resolution: lm Ω / step

Accuracy: ± (2% Setpoint + M Q)

Determining value setting:  Upper limit of resistance setting range: 0-510mQ resolution: lm Ω / step accuracy: ± (2% setting + lm)

Test time setting: Set range: 0. 5- -999.9 seconds resolution: 0. 1S / stepAccuracy: ± (0. 01% + 50m s)
