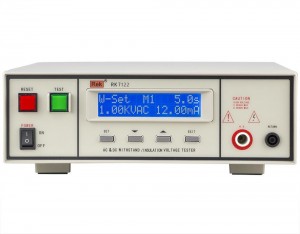

Rek RK7122 ໂປຣແກຣມທົດສອບ Hipot (AC:5KV, 12mA; DC: 6kV, 5mA)

Withstand Voltage Test Output Voltage(KV)

AC: 0-5

DC: 0-6

Test Accuracy: ±(2% Setting Value+5V)

Output Current(MA):

AC: 0.10-12.00

DC: 0.10 - 5.00

Test Accuracy: ±(2% Setting Value+2Counts)

Insulation Test

Output Voltage(KV): DC:0.10-1.00

Display Accuracy: ±(2% Setting Value+1Counts)

Test Resistance Range: 1-1000MΩ

Test Accuracy:

±(5% Reading+2Counts) DC:voltage≥500V ±(7% Reading+2Counts) DC:voltage＜500V

Test Time: 0.2～999.9s

Output Frequency: 50Hz/60Hz(Optional)

Input Characteristics: Single Phase47～63Hz,115V/230V   AC±15%(Optional)

Communication Interface:

Input:Test/Reset  Output:Pass/Fail/Test/Process

Test Instrument Failure Alarm: Buzzer,Liquid Crystal Display “FAIL”,Indicating Lamp

Memory Group: Group Memory,There Are 4 Test Modes In Each Group(W,IW-I,I-W Linking)

Keyboard Security Lock: Optional:”Locked” Or “Unlocked”

Exterior Dimension: 380*290*100mm

Weight: 7.6kg

Accessory: Test Line,Ground Wire,Power Line
