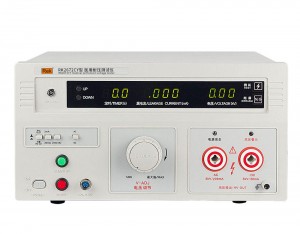

Rek RK2672CY ເຄື່ອງທົດສອບຄວາມທົນທານແຮງດັນ (ACW : 5.00kV, 100mA; DCW : 5.00kV, 20mA)

ACW

Output voltage range: (0.00～5.00)kV

maximum output power: 500VA (5.0kV 100mA)

Maximum rated current: 100mA

Current gear: 2mA, 20mA, 100mA

output waveform: Sine wave

Output waveform distortion: ≤5% (no load or pure resistive load)

testing time: 0.0S-999S 0=Continuous test

DCW

Output voltage range: (0.00～5.00)kV

maximum output power: 100VA (5.0kV 20mA)

Maximum rated current: 20mA

Current gear: 2mA, 20mA

Ripple factor: ≤5%

testing time: 0.0S-999S 0=Continuous test

Voltmeter scope: (0.00～5.00)kV

precision: ±(5%+3 characters)

Resolution: 10V

display value: rms value

Ammeter

Measuring range

Range 1: 0.1mA～2mA;

Range 2: 2mA～20mA

Range 3: 20mA～100mA

Resolution: 2mA gear: 1uA; 20mA gear: 10uA; 100mA gear: 0.1mA

Measurement accuracy: ±(5%+3 digits) within the range

Timer

Scope: 0.0S-999S

Minimum resolution: 0.1S

precision: ±(1%+50ms)

PLC interface: Optional

External control interface: Standard

Outline volume (D×H×W): 468mm×196mm×378mm

Weight: About 20.65KG

Standard accessories: Power cord RK00001, high voltage test wire, ground wire, BNC wire, high voltage gun
