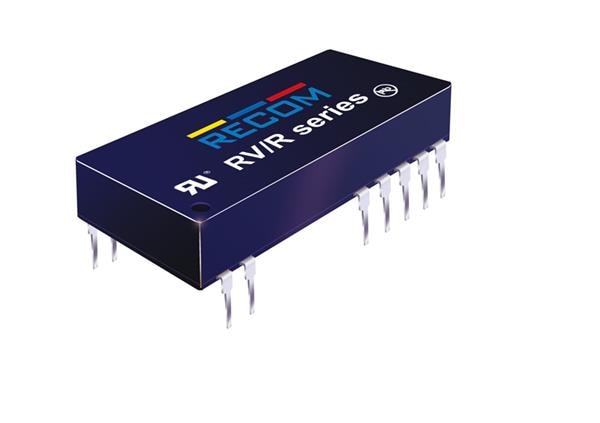

RECOM Power RV-123.3S/P/R8 ອິສເອລເທດ 2W DC/DC MIN 8kV UNREG 12Vin 3.3Vout

Width: 14.4 mm (0.567 in)

Height: 11.1 mm (0.437 in)

Length: 32.4 mm (1.276 in)

Industry: Medical, Industrial

Unit Weight: 9 g

Output Power: 2 W

Input Voltage: 10.8 V to 13.2 V

Mounting Style: Through Hole

Isolation Voltage: 8 kV

Number of Outputs: 1 Output

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 600 mA

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
