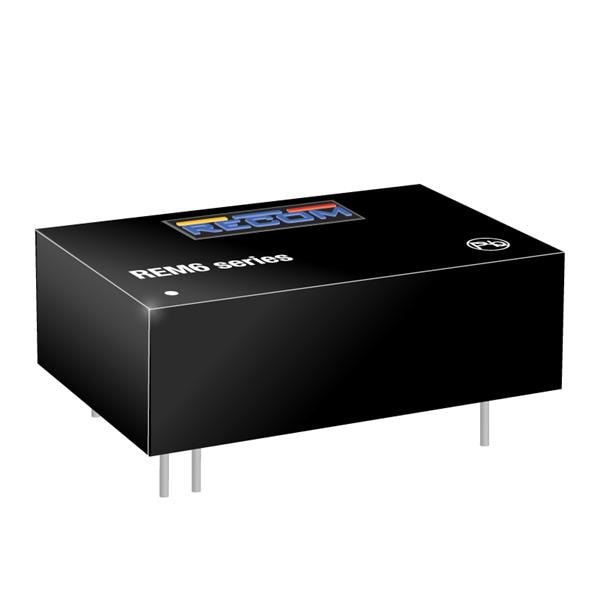

RECOM Power REM6-2412SW/A ອິສເລເທດ 6W 9-36Vin 12Vout DIP24

Width: 20.3 mm (0.799 in)

Height: 10.4 mm (0.409 in)

Length: 31.8 mm (1.252 in)

Industry: Medical

Compliance: ANSI; CB; CSA/CAN; EAC; ERP; IEC; REACH; RoHS; UL

Efficiency: 89%

Unit Weight: 14 g

Output Power: 6 W

Input Voltage: 9 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
