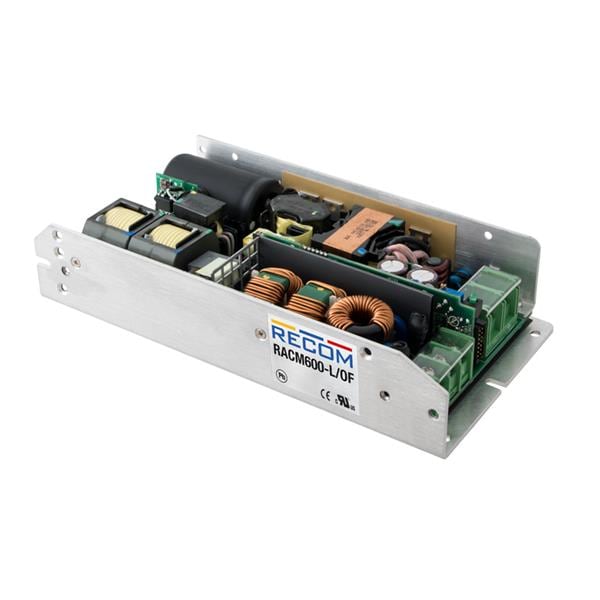

RECOM Power RACM600-12SL/OF ອຸປະກອນໃຫ້ພະລັງງານປ່ຽນແປງ 600W 12V 66.67A

Width: 101.6 mm (4 in)

Height: 40.6 mm (1.598 in)

Length: 196.8 mm (7.748 in)

Industry: Medical, Industrial

Dimensions: 196.8 mm x 101.6 mm x 40.6 mm

Efficiency: 92 %

Output Power: 600 W

Input Voltage: 80 VAC to 275 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 66.67 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
