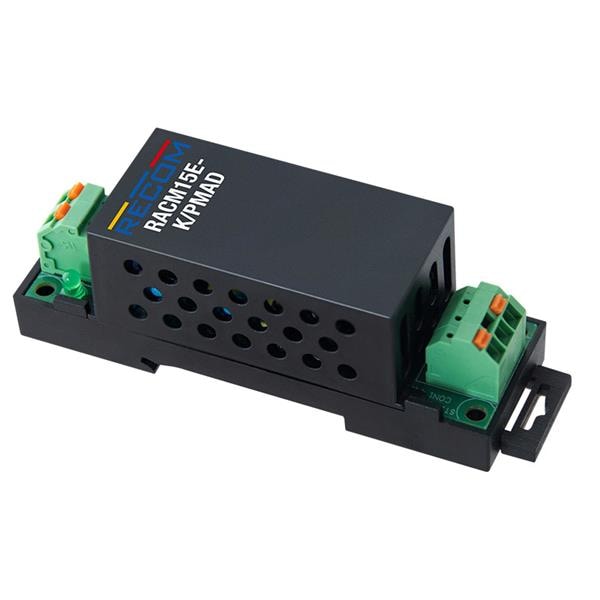

RECOM Power RACM15E-30SK/PMAD-CTN ອະຊີເຊັນ AC ເປັນ DC ພາວເລີ້ຍ 15W 80-275Vin 30Vout 500mA Panel

Width: 26.4 mm (1.039 in)

Height: 29.5 mm (1.161 in)

Length: 83 mm (3.268 in)

Industry: Industrial

IP Rating: IP20

Dimensions: 83 mm x 26.4 mm x 29.5 mm

Efficiency: 85 %

Output Power: 15 W

Input Voltage: 80 VAC to 275 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.2 kVAC, 4 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 30 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
