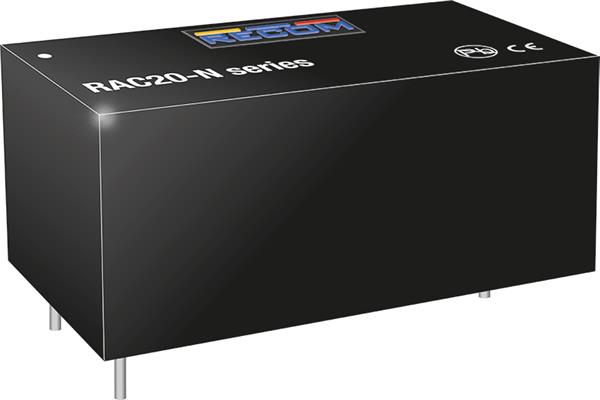

RECOM Power RAC20-12SN ໂມດູນອອບພຸດ AC/DC 20W 90-264Vin 12Vout 1.66A

Width: 27.5 mm

Height: 23.5 mm

Length: 52.5 mm

Industry: Industrial

Compliance: CAN/CSA; CE; EAC; ERP; IEC; RoHS; UL

Dimensions: 52.5 mm x 27.5 mm x 23.5 mm

Efficiency: 82%

Unit Weight: 62 g

Output Power: 20 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Enclosed

Standard Packaging Size: 2 x 1

Output Current-Channel 1: 1.66 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 35 C

Minimum Operating Temperature: - 25 C
