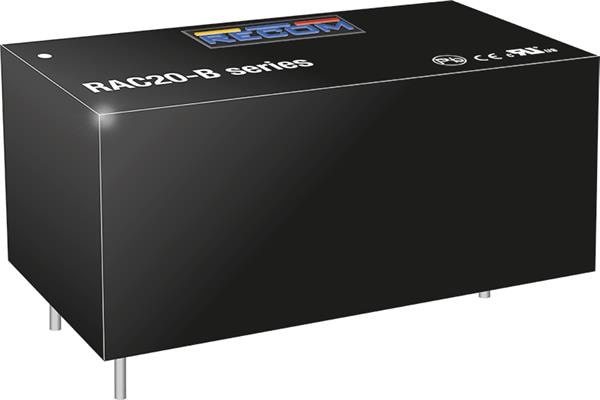

RECOM Power RAC20-12SB ໂມດູນອອບພຸດ AC/DC 20W AC/DC 3kV REG 90-264Vin 12Vout

Width: 27.5 mm

Height: 23.5 mm

Length: 52.5 mm

Industry: Industrial

Approvals: UL60950-1

Compliance: CE; EAC; RoHS; UL

Dimensions: 52.5 mm x 27.5 mm x 23.5 mm

Efficiency: 82%

Unit Weight: 54 g

Output Power: 20 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1.66 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 45 C

Minimum Operating Temperature: - 40 C
