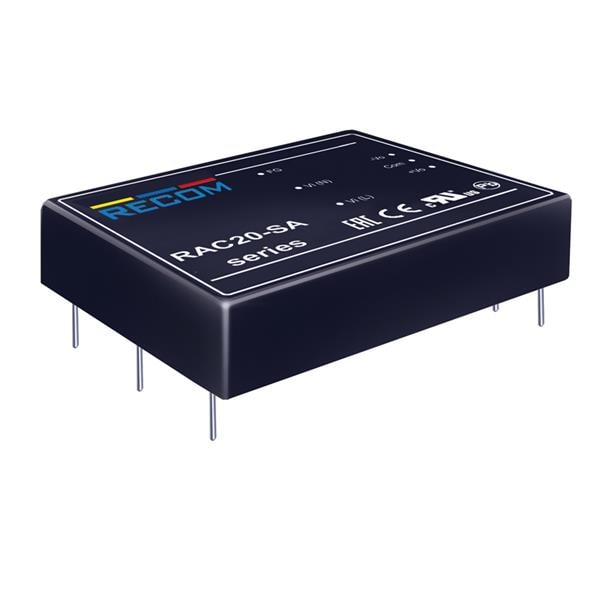

RECOM Power RAC20-05SA ໂມດູນອອບພຸດ AC/DC 20W AC/DC 3kV REG 90-264Vin 5Vout

Width: 48 mm

Height: 22 mm

Length: 70 mm

Industry: Industrial

Approvals: UL60950-1

Compliance: CAN/CSA; CE; EAC; RoHS; UL

Dimensions: 70 mm x 48 mm x 22 mm

Efficiency: 79%

Unit Weight: 110 g

Output Power: 20 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 4 A

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 25 C
