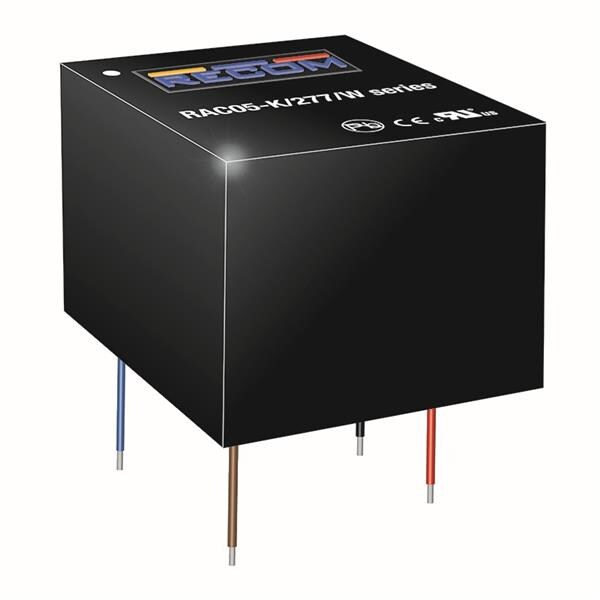

RECOM Power RAC05-24SK/277/W ໂມດູນອອບພຸດ AC/DC 5W 85-305Vin 24Vout 210mA

Width: 26.7 mm

Height: 21.8 mm

Length: 31.7 mm

Industry: Industrial

Compliance: CAN/CSA; EAC; ERP; FCC; IEC; RoHS; UL

Efficiency: 84%

Unit Weight: 37 g

Output Power: 5 W

Input Voltage: 85 VAC to 305 VAC

Mounting Style: Wire Leads

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.2 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 305 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 210 mA

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
