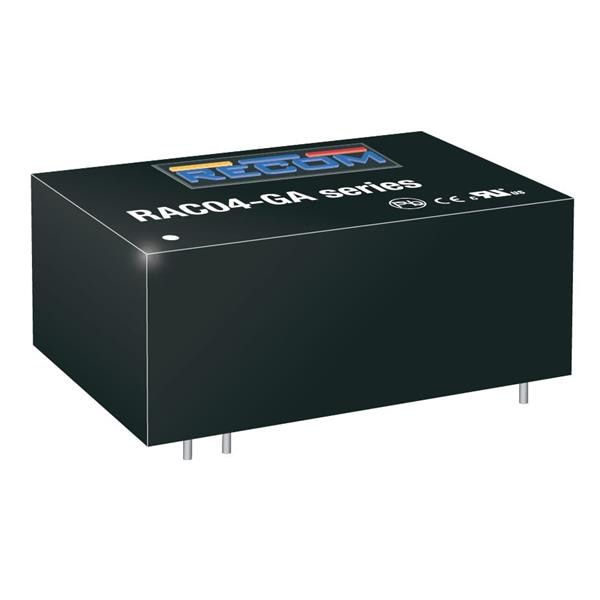

RECOM Power RAC04-09SGA ໂມດູນພະລັງ AC-DC 4W 85-305Vin 09Vout 440mA

Width: 24 mm

Height: 15 mm

Length: 37 mm

Industry: Industrial

Compliance: CAN/CSA; EAC; ERP; IEC; RoHS; UL

Efficiency: 77%

Unit Weight: 20 g

Output Power: 4 W

Input Voltage: 85 VAC to 305 VAC

Mounting Style: Through Hole

Input Frequency: 45 Hz to 65 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 305 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 440 mA

Output Voltage-Channel 1: 9 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
