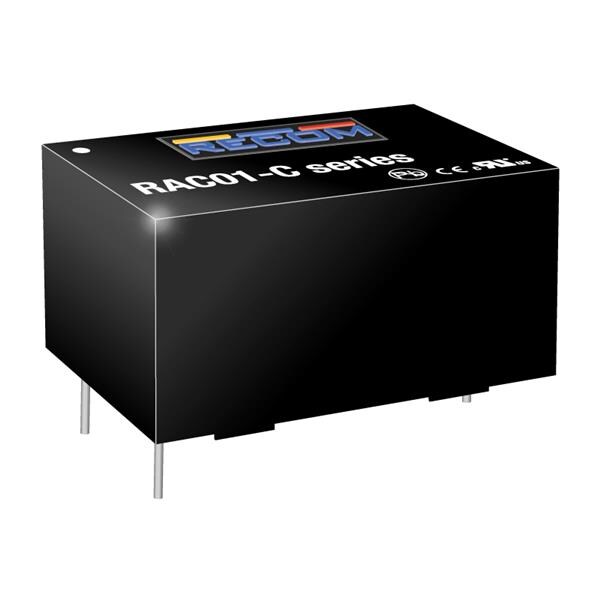

RECOM Power RAC01-05SC ໂມດູນຜະລິດໃຫ້ AC/DC CONV AC/DC 1W 80-264VIN 05VOUT

Width: 22.2 mm

Height: 17.75 mm

Length: 33.7 mm

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: CAN/CSA; EAC; ERP; IEC; RoHS

Dimensions: 33.7 mm x 22.2 mm x 17.75 mm

Efficiency: 68%

Unit Weight: 25 g

Output Power: 1 W

Input Voltage: 80 VAC to 277 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 80 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 200 mA

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 25 C
