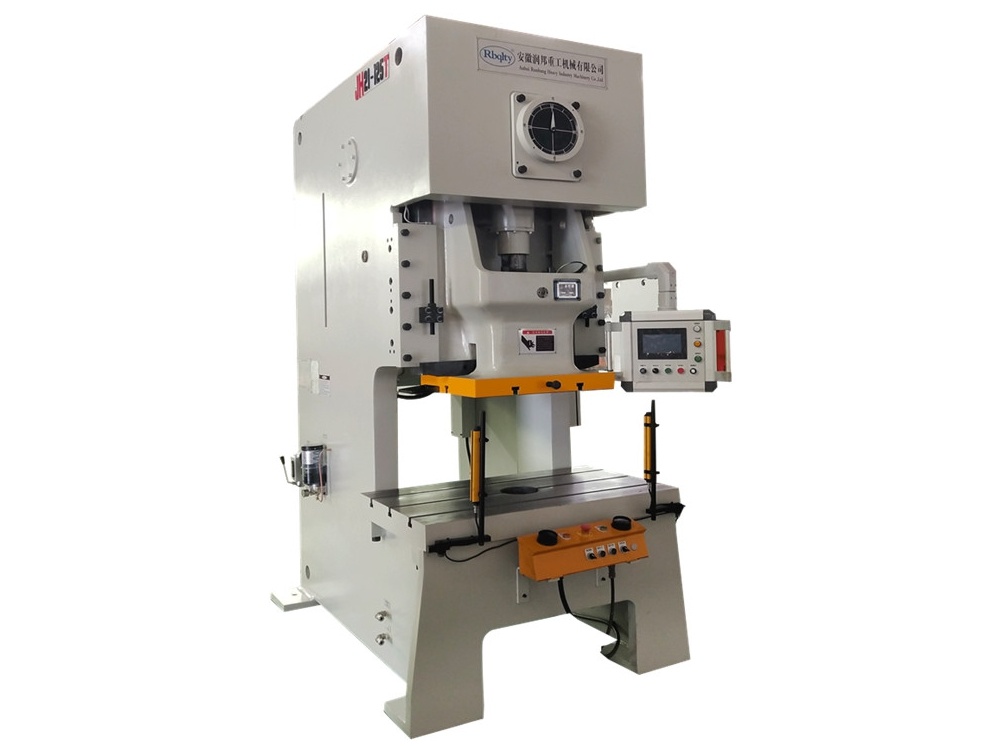

Rbqlty JH21-80 ປະສິດທິພາບສູງເຄື່ອງກົດພະລັງງານ Pneumatic (800KN)

Slider nominal pressure (KN): 800

Stroke of nominal force (mm): 4.5/2.5

Slider stroke (mm): 160/90

No.of strokes:

+ fixed (times/min): 60

+ variable L (times/min): 35-60

+ variable S (times/min): 55-100

Maximum closed height (mm): 320/355

 Closed height adjustment (mm): 80

Slider center distance from the body (mm): 310

Slider bottom size:

+ L-R (mm): 540

+ F-B (mm): 460

Hole size of die handle:

+ Diameter (mm): 50

+ Depth (mm): 70

Working table size:

+ L-R (mm): 950

+ F-B (mm): 600

+ Thickness (mm): 140

Ground screw distance:

+ L-R (mm): 920

+ F-B (mm): 1235

Machine sizes:

+ L-R (mm): 1280

+ F-B (mm): 1990

+ Height (mm): 2725

Motor power (solid/variable) (KW): 7.5/11

Weight (kg): 7500

Using air pressure (Mpa): 0.5
