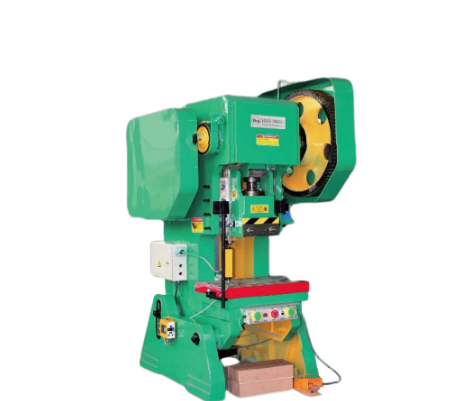

Rbqlty J21-100 ກົດດັນພະລັງງານກົນ incliable (1000KN)

Nominal Force (KN): 1000

Stroke of Nominal Force (mm): 6

Stroke of Sliding Block (mm): 130

Number of Strokers (times/min): 43

Closed Height  (mm): 380

Closed Height Adjustment (mm): 100

Distance From Slider Block Centre To the Frame (mm): 310

Length Between Columns (mm): 520

Hole Size for Die Handle:

+ Diameter (mm): 60

+ Depth (mm): 90

Size Of Worktable:

+ Left - right (mm): 900

+ Front - Back (mm): 630

Blanking Hole Diameter (mm): 180

Table Plate Thickness (mm): 120

The Maximum Tilt Angle (°): -

Dimensions:

+ Left - right (mm): 1480

+ Front - Back (mm): 1815

+ Height (mm): 2750

Power (KW): 11
