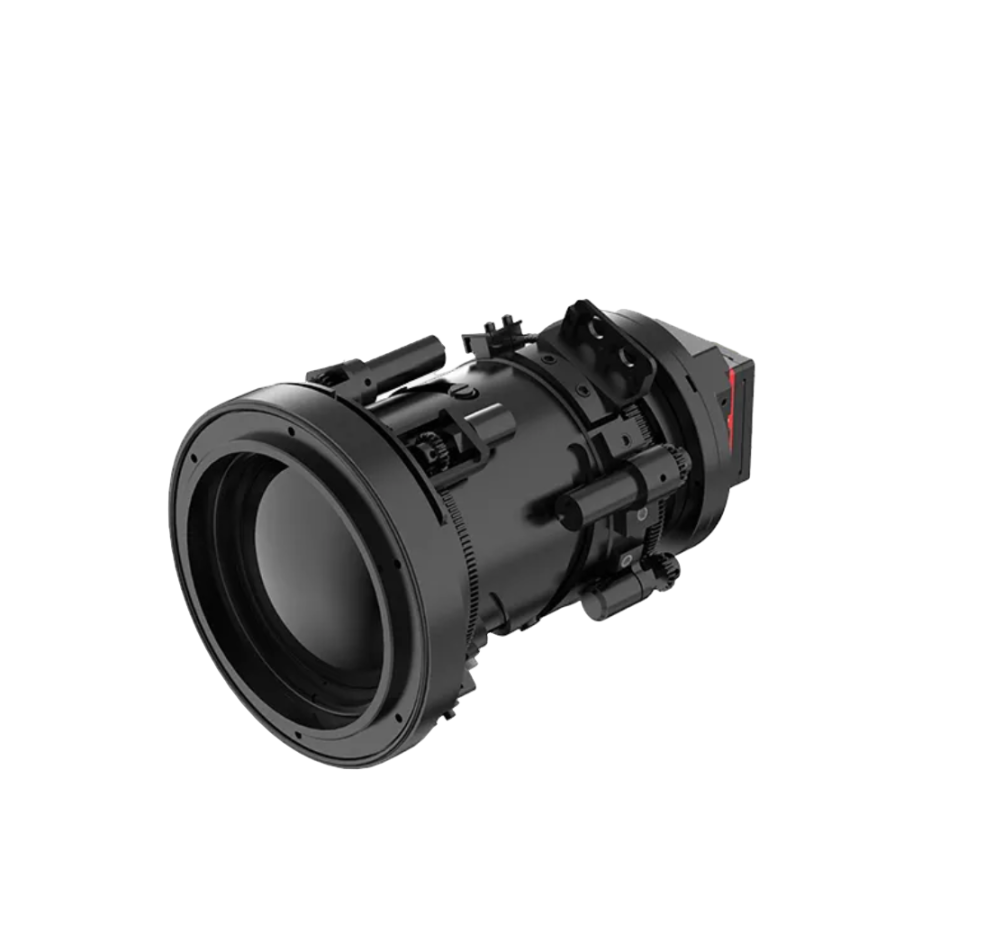

Raythink Turing F640 (Imaging) ໂມດູນອິນຟາເຣດທີ່ບໍ່ລະບາຍຄວາມຮ້ອນ (640×512; 8~14μm, 25Hz)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 640×512

Detector Frame Rate: 25Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤40mK at 25℃,F#1.0

Image Adjustment

Palette: Support (20 types)

Digital Zoom: 1.0~8.0× continuous zoom (step size: 0.1)

Image Processing: Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment

Mirroring: Horizontal/Vertical/Diagonal

Network Function

Network Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access: Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.

Simultaneous Previewed Videos: Up to 8 channels

User Management: Up to 20 users, 3 levels: administrator, operator and user

Browser: Google, Firefox, Edge, etc.

Intelligent Functions

Intelligent Video: Support

Intelligent Alarm: Detects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.

Intelligent Detection: Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.

Alarm Linkage: Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output

Lens

Lens Type: Athermalized/Motorized fixed-focus /Continuous zoom

Focus Mode: Manual/Automatic

Electric Focusing: Support

Electric Zooming: support

Digital

Power Supply Range: 5-24V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C: ＜1.5w

Digital Video: LVCMOS/BT.601/BT.1120

Communication Interface: RS-232/UART

Network Type

Power Supply Range: 9-15V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C: ＜2.0w

Communication Interface: One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART

Alarm Interface: One alarm input, one alarm output

Audio Interface: One audio input, one audio output

Interface

Analog Video: 1-channel PAL system

Environment Adaptability

Operating Temperature: -40℃～+70℃

Storage Temperature: -45℃～+85℃

Humidity: 5-95%, non-condensing

PTZ Function

Fire Warning: Supports fire point detection.

Thermal Imaging

Measurement Range: -20℃~﹢150℃, 0℃~﹢650℃

Measurement Accuracy: ±2°C or 2% (The greater shall prevail)@ambient temperature -20°C ~ +60°C
