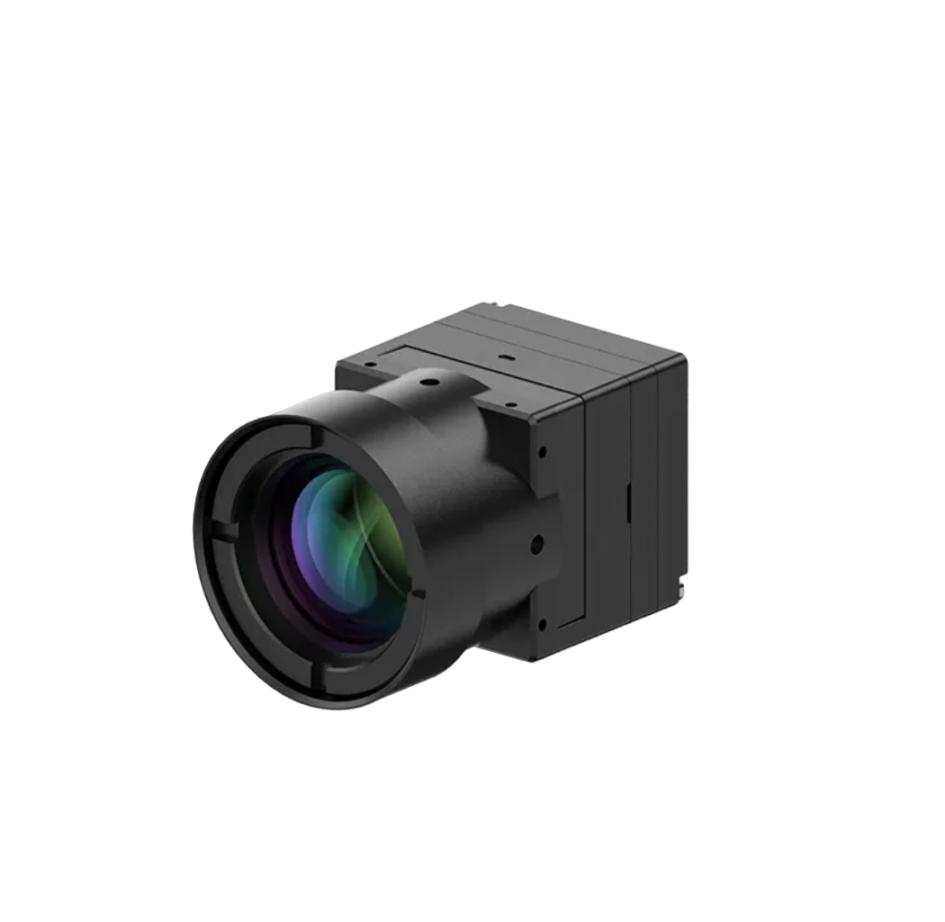

Raythink Turing A640H ໂມດູນອິນຟາເຣດທີ່ບໍ່ລະບາຍຄວາມຮ້ອນ (640×512; 8~14μm; -40°C~+80°C)
Performance Indicators
Detector Type: Uncooled VOx infrared detector
Resolution: 640×512
Frame Rate: 50Hz (60Hz, optional)
Pixel Pitch: 12μm
Spectral Band: 8~14μm
NETD: ≤40mK at 25℃, F#1.0
Image Adjustment
Polarity: Black-hot/White-hot
Palette: Support
Reticle: Display/Blank/Move
Digital Zoom: 1.0~8.0 continuous zoom (step size:0.1)
Image Processing: Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless
Mirroring: Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical): 3.9~5V DC, 5~18V DC supported by user extension components
Typical Power Consumption at 25°C Without Extension: ≤0.7W
Power Protection: Overvoltage, undervoltage, and reverse connection supported by user extension components
Interface
Digital Video: BT.656/DVP/LVCMOS
Analog Video: 1-channel PAL system
Serial Communication Interface: RS232/UART (3.3V)
Extension Component: MIPI/USB/Analog video/BT.656/DVP
Physical Characteristics
Dimensions (Without lens and extension components): 26mm×26mm×19.8mm
Weight (3.2mm, without extension components): 21g±1g
Environment Adaptability
Operating Temperature: -40°C~+80°C
Storage Temperature: -45℃～+85℃
Humidity: 5 ~ 95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 1000g@0.3ms, optical axis direction
