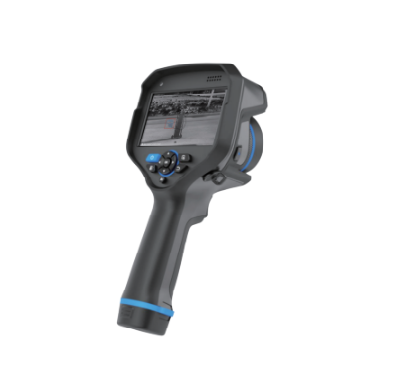

Raythink RG630C ກ້ອງມືຖື OGI (7–8.5μm, 22.9° × 18.4°)
Thermal Imaging
Detector Resolution: 640 × 512
Lens Configuration: 19 mm non-detachable manual lens
FOV: 22.9° × 18.4°
Focusing Mode: Manual
IFOV (Spatial Resolution): 0.68 mrad
Min. Imaging Distance: 0.3 m (imaging only)
Common Characteristics
Detector Type: Uncooled infrared detector
Thermal Sensitivity: 15mK
Wavelength Range: 7~8.5µm
Frame Rate: 25Hz
Flashlight: LED filling
Image Display and Mode
Display Size: 5-inch touch display, 1280 × 720 resolution
Daylight Camera: 4224×3136 (13 megapixel digital camera)
Palette: 20 palettes including iron red, gray, inverse iron red, inverse gray
Image Mode: Thermal imaging, PIP, thermal fusion, visible light
Temperature Width Stretch: Precise temperature with Max/Min/Level/Span
Image Storage
Storage Medium: SD card, standard 64 GB, maximum expansion 2 TB
Image File Format: jpg
Video Storage: Infrared video recording (infrared video only), standard MP4 video recording
Measurement and Analysis
Measurement Accuracy: ±2°C or ±2% of the reading
Gas Detection Function: AI intelligent gas detection, gas plume coloring, retrieving concentration, automatic alarm, gas image enhancement, image multi-sensitivity switch
Gases Detectable: Methane, sulfur dioxide, methanol, ethanol, Freon (R-134a, R-152a), and so on
Intelligent Gas Detection Alarm: Support
Gas Concentration Measurement: Support
Positioning: Images + geolocation data, GPS, GLONASS supported
System Functions
Laser Pointer: Support
Rangefinding: Support
Zooming in: 1–10× continuous zoom
Communication Mode: Wi-Fi, Bluetooth, Type-C
Voice Control: Voice assistant with quick command recognition
Others
Microphone/Speaker: Support
Battery: 3.6 V, 10000 mAh lithium-ion battery, not field-replaceable, support fast charging
Charging Mode: Direct charging, desktop charging
Operating Time: Continuous operation time ≥ 5 hours (depending on the actual environment and service conditions)
Hand Strap: Support
Interface: TYPE-C USB 3.0, SD card, SIM card, tripod
Impact and Vibration Level: 2G (IEC60068-2-6), 25G (IEC60068-2-29)
