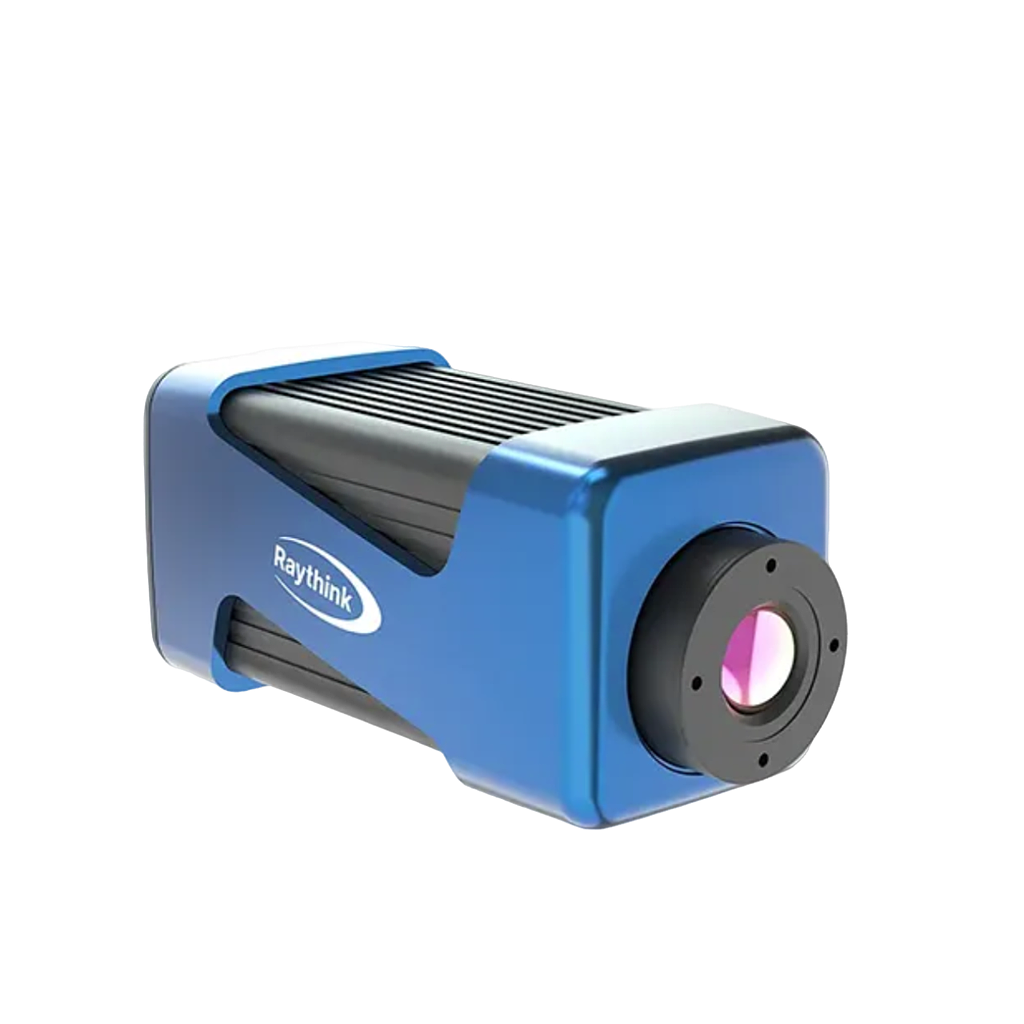

Raythink ATR61 Motorized Focusing Thermal Camera (8μm~14μm; -20℃ ~ 550℃)

Thermal Imaging Parameters

Detector: Uncooled VOx detector

Infrared Resolution: 640×512

Pixel pitch: 12μm

Spectral Band: 8μm~14μm

Thermal Sensitivity (NETD): <50mK

Temperature Measurement Function

Measurement Range: -20℃~+150℃,0℃~550℃

Measurement Accuracy: ±2°C or ±2% of readings, whichever is greater.

Temperature Measurement Correction: Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance

Measurement Tool: Settings of measurement rules for a total of 12 points, lines, and areas Supports isotherm setting

Temperature Width Stretch: Support temperature width stretch

Image and Video

Frame Rate: 25Hz

Palettes: 18 color palettes including black-hot, white-hot, iron red, rainbow, etc.

Video Standards: H.264, H.265

Thermal Image Capture: Support thermal image capture and secondary analysis

Mirror Image: Horizontal/Vertical/Diagonal

Digital Zoom: 1.0~8.0 continuous zoom (step size: 0.1)

System Interface

Communication interface: RJ45，supporting Gigabit network and customized RS485 for Pecol-D protocol.

Video Interface: 1-channel analog video

Alarm Interface: 1-channel alarm output (optional)

Network Protocol: TCP, UDP, ICMP, DHCP, RTSP

Interface Protocol: ONVIF, GB28181

Device Specifications

Operating Temperature: -20℃~+60℃

Power supply mode: 10~36V DC, POE

Typical Power Consumption: 3.3W

Dimensions: 55mm×55mm×110mm

Weight: About 430g
