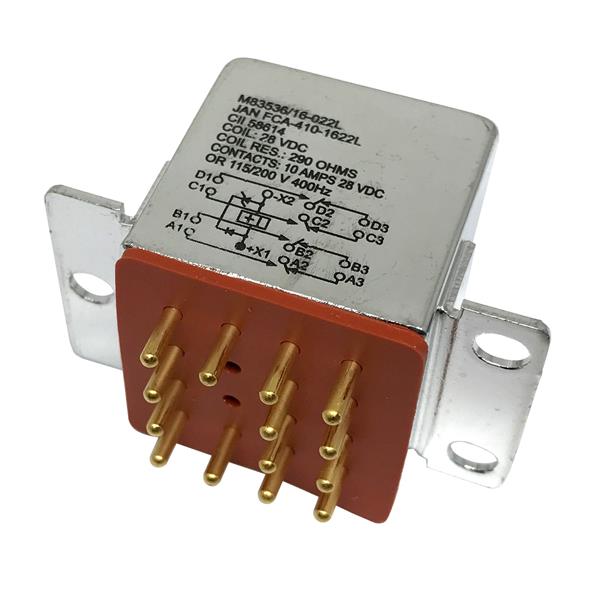

Raychem - TE Connectivity M83536/16-022L ມິດເຣນຈເລລຢ M83536/16-022L

Width: 26.035 mm

Height: 25.654 mm

Length: 26.035 mm

Coil Type: Non-Latching

Unit Weight: 111.458 g

Coil Voltage: 28 VDC

Contact Form: 4PDT (4 Form C)

REACH - SVHC: Details

Mounting Style: Through Hole

Coil Resistance: 290 Ohms

Coil Termination: Solder Pin

Contact Material: Silver Cadmium Oxide (AgCdO)

Switching Voltage: 115 VAC, 28 VDC

Relay Contact Form: 4 Form C (4PDT-NO, NC)

Contact Termination: Solder Pin

Contact Current Rating: 10 A
