Input voltage: AC 90V~240V
Power: Less than 15W
Input signal: Orthogonality TTL square wave; frequency＜2MHZ; electric current＞1mA
Resolution: 0.1、0.2、0.5、1、2、5、10
Weight: 1kg
Dimension: 222 x 108 x 76(mm)
Product brief:

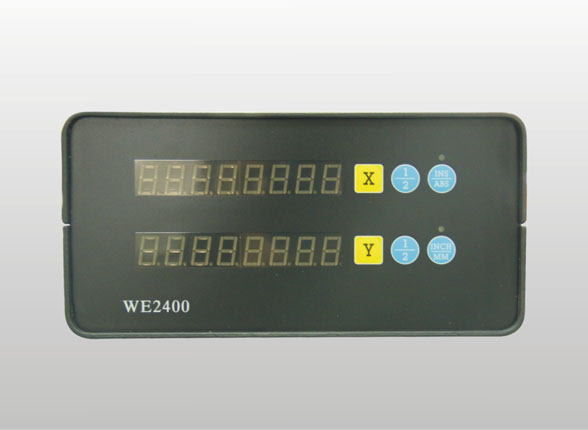

DRO WE2400 can be installed to various machines to carry out inspection and positioning.
Features:
1. Adopts self-developed 24-bit IC and when resolution is 0.001mm, the speed of counter is 4m/s.
2. Anti-jamming capabilities of power supply and signal can be more than 2200V.
3. HD nixie tube.
4. The indicator indicates the work status.
5. Recalls the last position after power failure without battery.
6. Adopts light-touch separate buttons, which contributes to a long service time.
7. Wide range of input voltage (AC90V～240V).
8. Zero clearing.
9. Numerical analysis.
10. Metric units / Imperial units transfer.
11. Absolute coordinate / relative coordinate transfer.
12. Computation direction can be set.
13. Can be connected with linear scale or encoder
14. Linear correction available.
