Principal axis: Available in BT30, BT40 or BT50 in accordance with customized requirement.
Measuring range: Diameter (X axis): Φ300mm Height (Z axis): 30~400mm
Digital Measuring System:
+ Linear scale resolution (X, Y-axis): 0.0005mm
+ Diameter, semi-diameter, height, angle, arc, cutting angle, or back bevel angle available by DTP-1540
+ Sampling by foot-switch; output by RS232; output by printer
Aiming System:
+ HD CCD camera, 17〞color display
+ 0.5X lens (Total magnification: 20X)
+ Standard: cross curve
Illumination: Profile illumination is LED. Surface illumination is halogen lamp (24V, 30W). Brightness adjustable.
Dimension (L×W×H): 780×530×950(mm)
Weight: 90㎏ or so

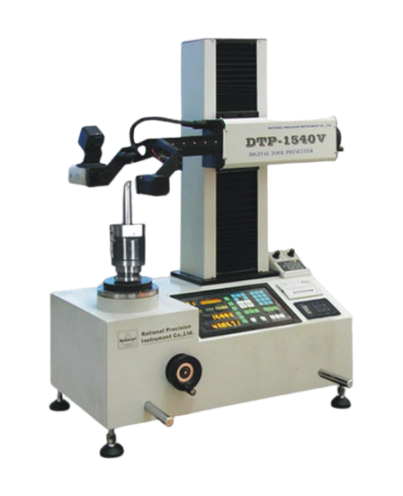

Product brief:
This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.
