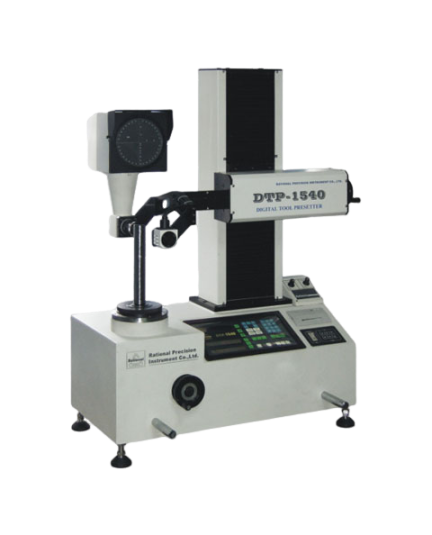

Rational DTP-1540 ຕົວກໍານົດການວາງໄວ້ລ່ວງໜ້າ (X: Φ300mm; Z: 30~400mm)

Measuring range: Diameter (X-axis): Φ300㎜ Height(Z-axis): 30~400㎜

Linear scale resolution (X, Y-axis): 0.0005mm

Principal axis: BT40

Diameter of screen: Φ120㎜

Lens Magnification: 20X

Illumination: Adjustable halogen lamp (24V, 20W)

Power supply: AC110/220V 50/60HZ

Dimension (L×W×H): 780×530×950(mm)

Net weight: 90kg or so

Product brief:

This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.
