X-axis Travel (mm): 200
Y-axis Travel (mm): 100
Metal table size (mm): 404×265
Glass table size (mm): 270×170
Resolution (μm): 0.5
Indication error (mm): 2.5+L/75 (L is the length of the measured object. Unit: mm)
Z-axis Travel (mm): 50 (focusing)
Weight (kg): 360
Dimension (mm): 1200×1140×1940
Projector screen:
Size (mm): Ф 615
Rotary range: 0~360°
Resolution: 1’ or 0.01°
Lens:
- Magnification: 5× (Optional)
Field of view (mm): Ф120
Working distance (mm): 242.8
Max. measuring height: 50
- Magnification: 10× (Standard)
Field of view (mm): Ф60
Working distance (mm): 143.2
Max. measuring height: 50
- Magnification: 20× (Optional)
Field of view (mm): Ф30
Working distance (mm): 85.5
Max. measuring height: 50
- Magnification: 50× (Optional)
Field of view (mm): Ф12
Working distance (mm): 92
Max. measuring height: 50
- Magnification: 100× (Optional)
Field of view (mm): Ф6
Working distance (mm): 48.5
Max. measuring height: 48
Power supply: AC 100-240V 50/60Hz. Total power: 650W:
Product brief:

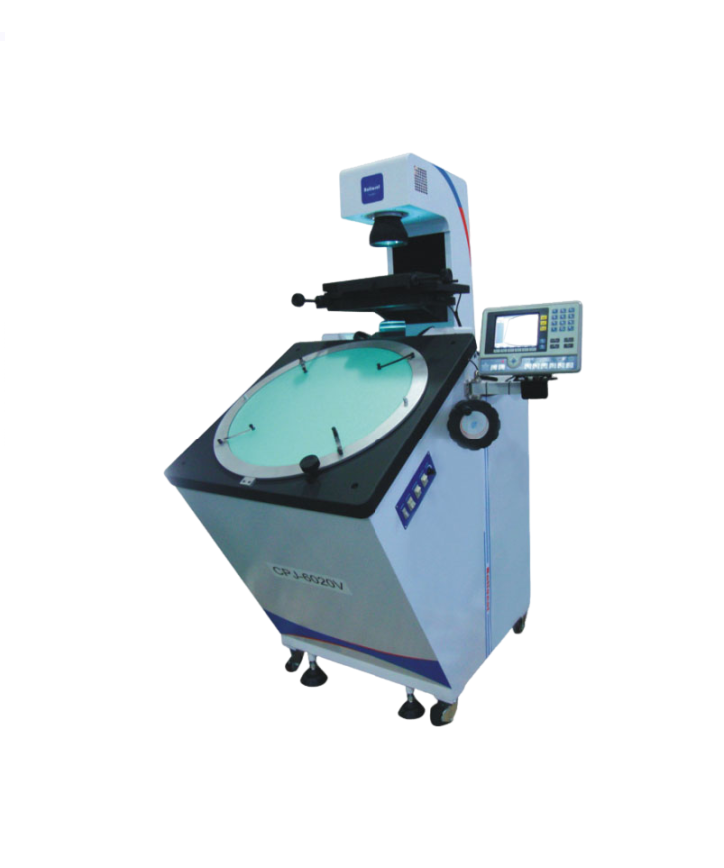

CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.
