X-axis Travel (mm): 200
Y-axis Travel (mm): 100
Worktable size (mm): 400×150
Swing range: ±15°
Resolution (μm): 0.5
Indication error (mm): X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm)
Z-axis Travel (mm): 75 (focusing)
Weight (kg): 160
Dimension (mm): 1090×830×1010
Projector screen:
Size (mm): Ф 300
Rotary range: 0~360°
Resolution: 1’ or 0.01°
Lens:
- Magnification: 10× (Optional)
Field of view (mm): Ф30
Working distance (mm): 77.7
- Magnification: 20× (Optional)
Field of view (mm): Ф15
Working distance (mm): 44.3
- Magnification: 50× (Optional)
Field of view (mm): Ф6
Working distance (mm): 38.4
- Magnification: 100× (Optional)
Field of view (mm): Ф3
Working distance (mm): 25.3
Data processing system: Multi-functional DRO DC-3000
Illumination: Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp.
Accessories: Printer, edge detector, Measuring software M2D-CPJ, etc.
Power supply: AC 100-240V 50/60Hz. Total power: 450W:
Product brief:

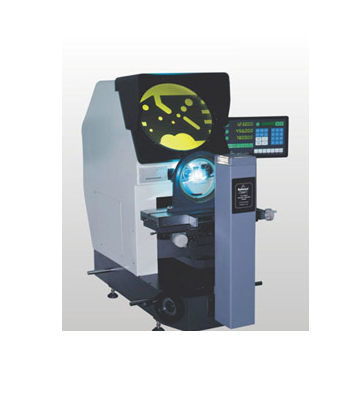

Horizontal Profile Projector, an ergonomic measuring instrument with reliable mechanical structure and high precision magnification, can effectively and efficiently inspect profile, section, surface and outline of complicated workpiece.
This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
