Travel (mm)
X: 600
Y: 1000
Z: 500
Accuracy:
Space accuracy: MPEE=(3.5+L/250)μm
Monaxial accuracy: MPEE1= (3.0+L/250)μm
Differentiate force：0.5μm
Construction: Sliding bridge
Total power: 75W(excluding PC)
System characteristics:
Probing system: NENISHAW WH20i/ Video probing system
Measuring software：RationalDMIS (manual)/ QMS3D-M
Dimension (m): 1.14×1.5×2.4
Weight: 1180kg
Max. load-bearing: 500kg
Packing dimension (m): 1.35×1.95×2.4
Measuring accuracy：(3.0+L/200)μm
Illumination：LED cold lighting, Whose brightness can be continuously adjusted.
Total magnification: 20X—128X(19 inches display. Resolution: 1440*900)
Camera: Color 1/2" CCD camera.
Zoom lens magnification: 0.7—4.5X.
Object view: 11.1mm—1.7mm

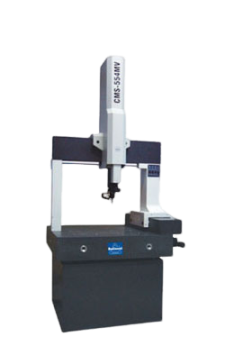

Product brief:
This instrument integrates contact probing system and video probing system. With shifting the best systems, the measuring speed, flexibility and work efficiency are greatly improved.
It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
