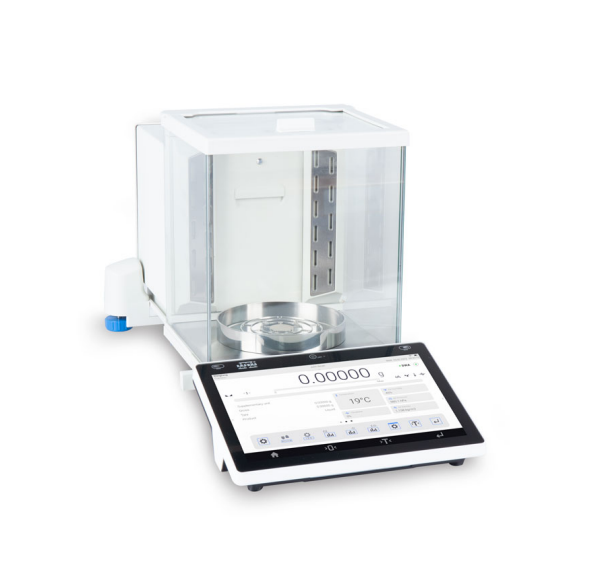

RADWAG XA 200.5Y.KO ມະຫາຊົນປຽບທຽບ (210 g; 0.01 mg)

Metrological parameters:

E1 Calibration Range : 200 g

E2 Calibration Range :  50 – 200 g

F1 Calibration Range : 50 mg – 200 g

F2 Calibration Range :  1 mg – 200 g

M1 Calibration Range :  1 mg – 200 g

M2 Calibration Range: 1 mg – 200 g

Maximum capacity [Max] :  210 g

Readability [d] :  0.01 mg

Standard repeatability [5% Max] : 0.005 mg

Standard repeatability [Max] : 0.025 mg

Permissible repeatability :  0.05 mg

Eccentricity (tested load) :  1d / 1 mm

Electric compensation range :  0 – 210 g

Stabilization time :  5 s

Adjustment: internal (automatic)

Physical parameters:

Display: 10″ graphic colour touchscreen

Weighing pan dimensions:  ø90 mm

Weighing device dimensions : 564×253×300 mm

Controling device dimensions: 249×170×72 mm

Packaging dimensions : 765×515×545 mm

Net weight:  15,7 kg

Gross weight :  20.1 kg

Communication interface:

Communication interface :  2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Environmental conditions:

Operating temperature : +15 – +35 °C

Operating temperature change rate : ±1 °C / 12 h

Relative humidity :  40% – 70%

Relative humidity change rate: ±5% / 4 h
