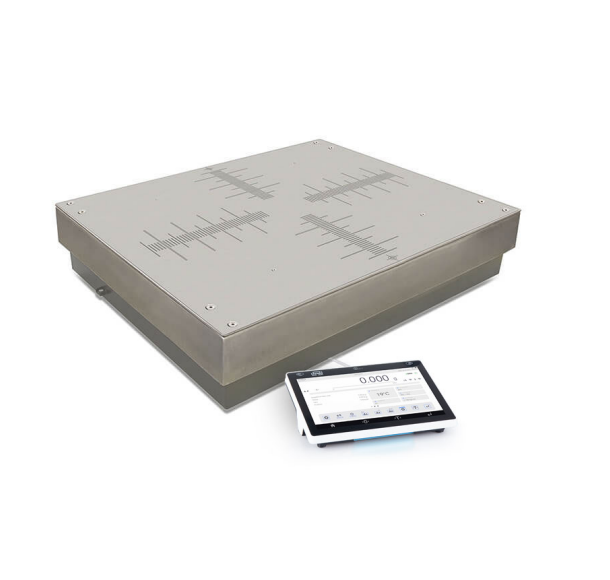

RADWAG HRP 2000.5Y.KO ມະຫາຊົນປຽບທຽບ (2100 kg; 2 g)

Metrological parameters:

E1 Calibration Range : -

E2 Calibration Range : -

F1 Calibration Range : -

F2 Calibration Range : 2000 kg

M1 Calibration Range: 500 – 2000 kg

M2 Calibration Range :  200 – 2000 kg

Maximum capacity [Max] : 2100 kg

Readability [d]:  2 g

Standard repeatability [5% Max] : 2.5 g

Standard repeatability [Max] : 5 g

Permissible repeatability : 10 g

Eccentric load deviation : —

Eccentricity (tested load): 1d / 1 mm

Electric compensation range : 0 – 2100 kg

Stabilization time :  10 s

Adjustment: internal (automatic)

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : 1250×1000 mm

Self-centering weighing pan dimensions: —

Weighing unit dimensions with self-centering weighing pan : —

Controling device dimensions : —

Comparator packaging dimensions without selfcentering weighing pan: —

Comparator packaging dimensions with self-centering weighing pan: —

Packaging dimensions : 1250×1500×613 mm

Net weight : 530 kg

Gross weight : 665 kg

Communication interface:

Communication interface 2×USB-A, USB-C, HDMI, Ethernet,Wi-Fi, Hotspot:  2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi,Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±1 °C / 12 h

Relative humidity : 0% – 60%

Relative humidity change rate : ±5% / 4 h
