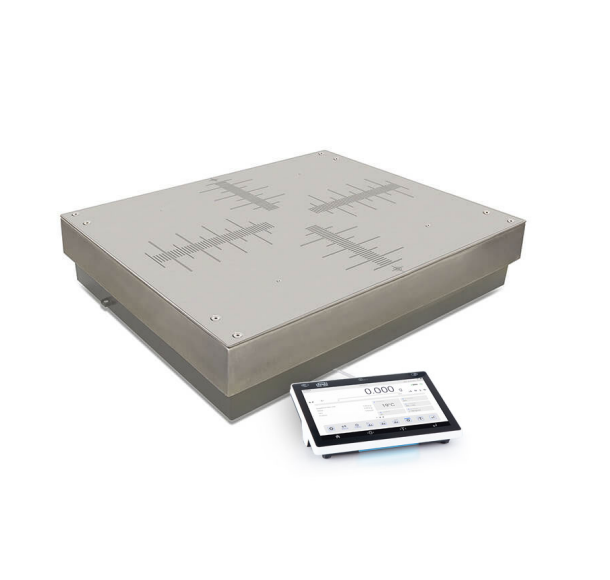

RADWAG HRP 2000.5Y.KB ມະຫາຊົນປຽບທຽບ (2100 kg; 5 g)

Metrological parameters:

E1 Calibration Range:  -

E2 Calibration Range :  -

F1 Calibration Range:  -

F2 Calibration Range: -

M1 Calibration Range : 500 – 2000 kg

M2 Calibration Range : 500 – 2000 kg

Maximum capacity [Max] :  2100 kg

Readability [d] :  5 g

Standard repeatability [5% Max] : 5 g

Standard repeatability [Max] : 10 g

Permissible repeatability: 15 g

Eccentricity (tested load): 0.5d / 1 mm

Electric compensation range : 0 – 2100 kg

Stabilization time: 10 s

Adjustment :  internal (automatic)

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : 1250×1000 mm

Controling device dimensions : 249×170×72 mm

Comparator packaging dimensions without self-centering weighing pan : —

Packaging dimensions : 1500×1250×615 mm

Net weight : —

Gross weight : —

Net weight/gross weight (comparator): 300 / 400 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi,Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±2 °C / 12 h

Relative humidity : 40% – 60%

Relative humidity change rate : ±10% / 4 h
