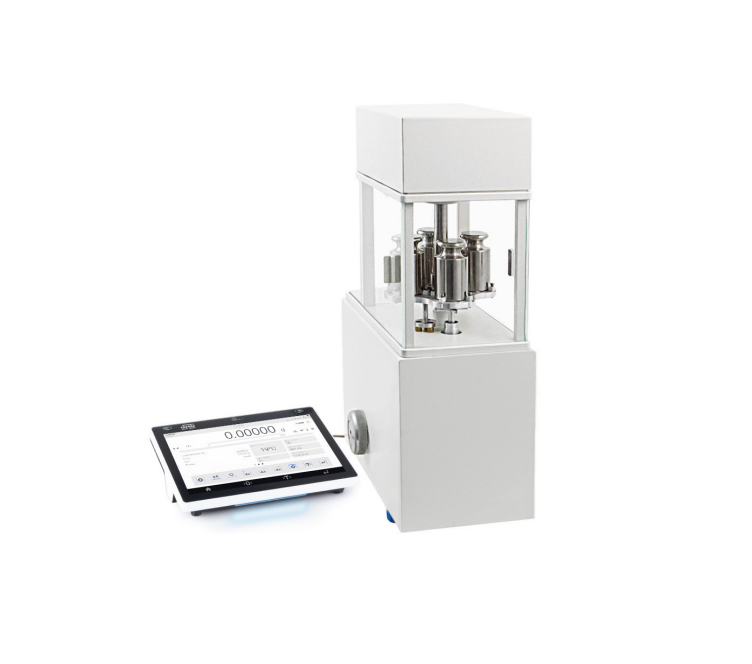

RADWAG AK-4.100.5Y ເຄື່ອງປຽບທຽບມະຫາຊົນອັດຕະໂນມັດ (110 g; 0.001 mg)

Metrological parameters:

E1 Calibration Range :  10 – 100 g

E2 Calibration Range :  10 – 100 g

F1 Calibration Range :  10 – 100 g

F2 Calibration Range :  10 – 100 g

Maximum capacity [Max] :  110 g

Readability [d]:  0.001 mg

Standard repeatability [5% Max] :  1.5 µg

Standard repeatability [Max] : 2 µg

Permissible repeatability : 3.5 µg

Eccentricity (tested load) : —

Electric compensation range : -1 g – +10 g

Stabilization time :  30 s

Adjustment :  external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions: ø24 mm

Weighing device dimensions : 385×215×600 mm

Controling device dimensions:  249×170×72 mm

Anti-draft chamber dimensions : 560×340×665 mm

Packaging dimensions : 860×800×560 mm

Net weight : 46.8 kg

Gross weight : 66.8 kg

Communication interface:

Communication interface :  2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature: +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (3% / 4 h)
