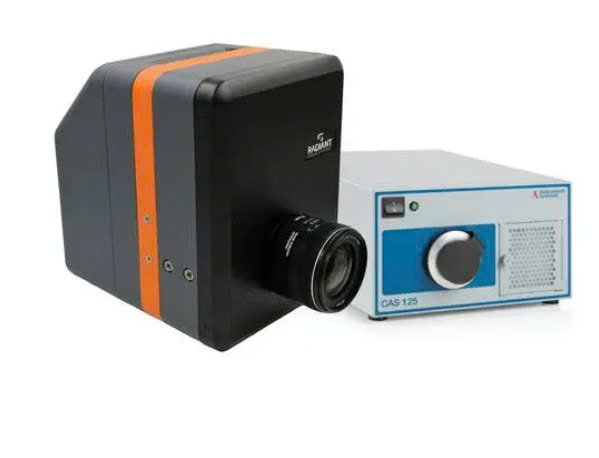

Spectrometer Specifications
Luminance Minimum: 0.02 cd/m²
Spectroradiometer Absolute Accuracy: Color Coordinates (x,y) ± 0.002 for CIE standard illuminant A
Short-term Repeatability: ± 0.35% (2 sigma)
Minimum Measurement Time: 200 ms
Measurement Spot Size: Corresponding to ~790 I16-G imaging colorimeter sensor pixels (in diameter)
Communication Interface: Ethernet 100/1000
Power supply: Wide-range input 100 - 240 VAC 50/60 Hz
Dimensions (H x W x D): 136.5 mm x 3233 mm x 325 mm
Weight: 6.6 kg
Imaging System Specifications
Sensor Pixel Resolution:5312 x 3032
Sensor Megapixels: 16.1
Sensor Type: CMOS
System Dynamic Range(single exposure, per pixel): 70 dB (1 x 1 binning)
Luminance (Minimum)*: 0.0005 cd/m² Limit of Detection
0.002 cd/m² @ SNR = 60
0.003 cd/m² @ SNR = 100
Luminance (Maximum): 10¹⁰ cd/m² with optional ND filters
Field of View (Full Angle, H x V degrees): 24 mm 33° x 19°
35 mm 24° x 14°
50 mm 17° x 10°
100 mm macro 8° x 5°
Minimum Measurement Time***: 0.5 sec - photopic/ 1.4 sec - color
Communication Interface: 10 Gigabit Ethernet (10 GigE)
