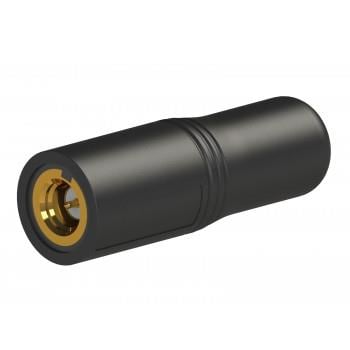

Radiall R380300036 ເຄື່ອງຮັບສຽງສຽງ GNSS ACTV ANT. LINR. POLAR. SMA MEDIUM

Gain: 10 dBi

VSWR: 2.5:1

Style: Stubby

Length: 44.5 mm

Diameter: 13 mm

Impedance: 50 Ohms

Application: Satellite Navigation, Satellite Tracking

Polarization: Linear - Vertical

REACH - SVHC: Details

Mounting Style: Panel Mount

Number of Bands: 2 Band

Center Frequency: 1.585 GHz, 1.602 GHz

Mechanical Style: Whip

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.559 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 40 C
