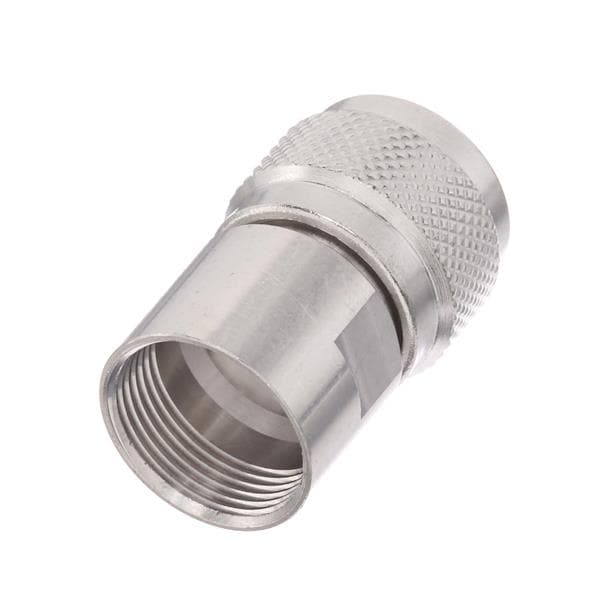

Radiall R161022000W Connectors N / STRAIGHT PLUG CLAMP TYPE CABLE 10+11/50+75 S+D

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

RF Series: N Type

Body Style: Straight

Cable Type: RG-11, 144, 165, 213, 214, 216, 225, 393, KX13, KX4, KX8

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Straight

REACH - SVHC: Details

Body Material: Brass

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 1.4 kV

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 11 GHz

Termination Style: Clamp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 55 C
