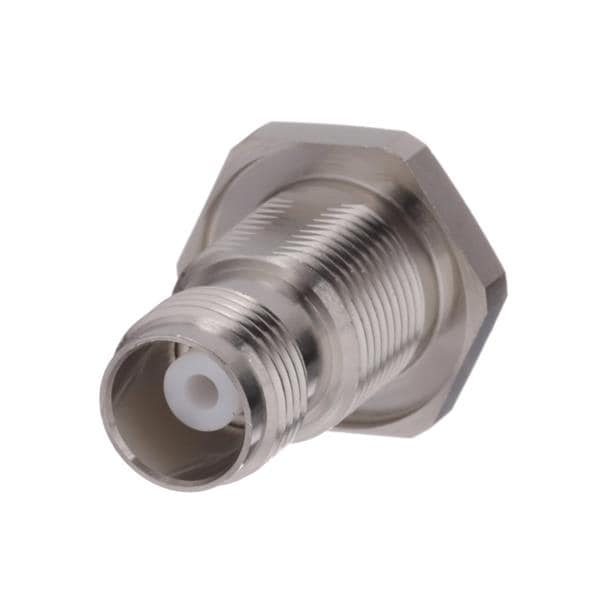

Radiall R143325000 ຕົວເຊື່ອມ TNC / ປະຕູກັນນ້ຳປະກອບກັບກະແຜ່ນ JACK PANEL SEAL REAR MOUNT CLAMP TYPE - ສາຍ 5/50

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: TNC

Body Style: Bulkhead

Cable Type: RG-58, 141, 142, 223, 400, KX15, KX23

Body Finish: Nickel

Orientation: Straight

Unit Weight: 22.650 g

REACH - SVHC: Details

Body Material: Brass

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 11 GHz

Termination Style: Clamp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
